| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

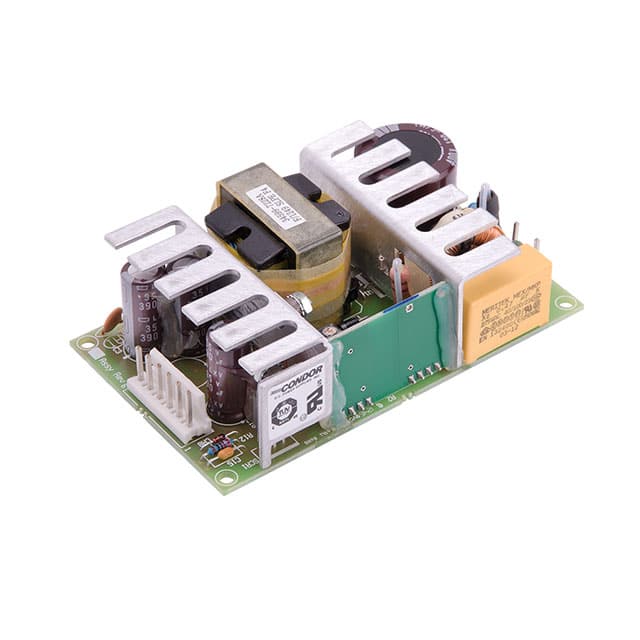

The SL Power Electronics GLC50G is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers 50W of power and features an adjustable output with universal input.
This converter is chassis mounted and offers a power efficiency of 85%. It has a compact size with dimensions of 180.0mm x 63.5mm x 31.8mm. The unit provides multiple outputs, including -12V, and is approved by CE, cURus, and TUV.
Key specifications include a current rating of 200 mA and an operating temperature range of 0°C to 50°C. The GLC50G is RoHS3 compliant and has an MSL rating of 1.
The GLC50G provides three outputs: 3.3V, +12V, and -12V.
The GLC50G is chassis mount.
The operating temperature range is 0°C to 50°C.
The efficiency is 85%.
The GLC50G is approved by CE, cURus, and TUV.
The dimensions are 180.0mm x 63.5mm x 31.8mm.
The power rating is 50W.
