| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Temperature Coefficient | |
| Turn On Time | |
| Type | |
| Voltage | |
| Width |

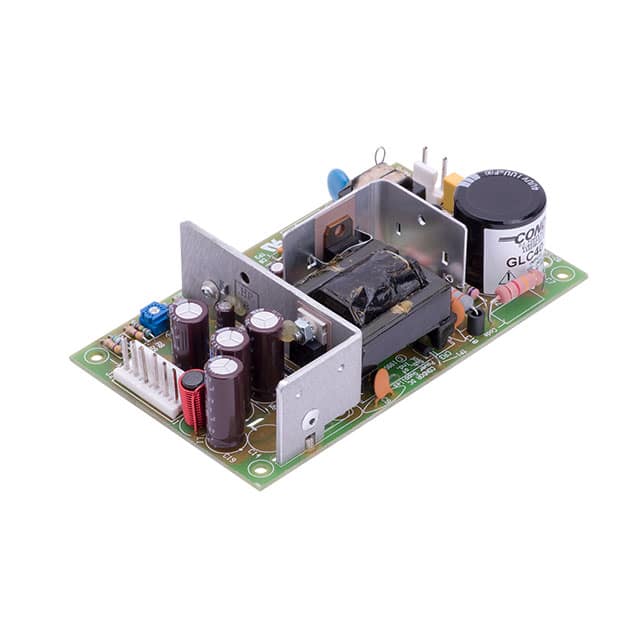

The GLC40-12 from SL Power Electronics is a cost-effective, 40-watt AC to DC power supply designed for ITE (Commercial) applications. It features a universal input voltage range of 90-264 VAC, making it suitable for global use. The converter provides a continuous output power of 40W under natural convection cooling, with a peak capability of 45W for 60 seconds.
Key electrical specifications include an input current not exceeding 1.3A at 120 Vac/60 Hz, and an output current of 3.3A. The unit offers adjustable output and built-in overvoltage protection on V1. It operates within a temperature range of 0°C to 50°C and has a typical efficiency of 70%.
Designed as an open frame unit, the GLC40-12 is intended for chassis mounting. Its compact dimensions are 126.0mm x 75.2mm x 30.5mm. The power supply is marked to LVD and carries approvals from CE, cURus, and TUV, indicating compliance with relevant safety standards.
90-264 Vac.
