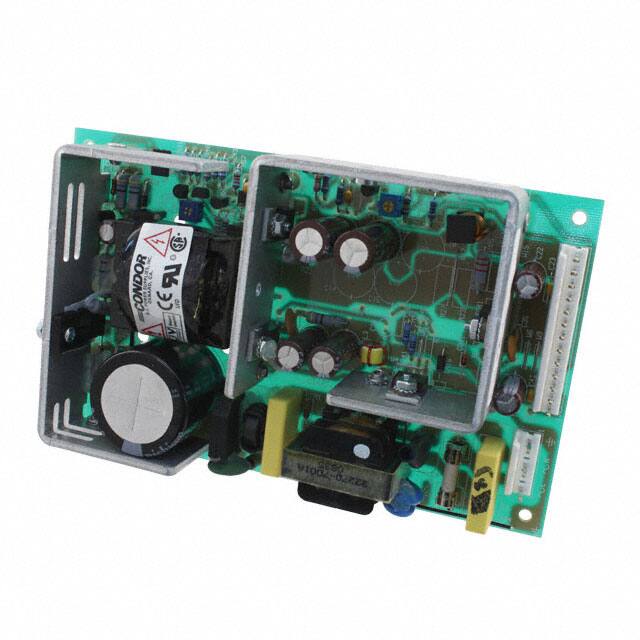

The SL Power Electronics GLC110-524G is a versatile 110 Watt Global Performance Switcher, categorized as an AC/DC converter. This open-frame unit is designed for chassis mounting and features a universal input voltage range of 90-264 Vac.
Key electrical specifications include a nominal output voltage of 5V with a current rating of 1.5A, delivering a total output power of 110W. The converter boasts an efficiency of up to 85% and operates within a temperature range of 0°C to 50°C. It includes features such as adjustable output and universal input, making it suitable for ITE (Commercial) applications.
Mechanical dimensions are 177.8mm in length, 108.0mm in width, and 33.0mm in height. The unit is equipped with built-in EMI filtering and safety approvals from CE, CSA, TUV, and UR. It also features overvoltage protection on the main output and is fully protected against short circuit and output overload.
The input voltage range is 90-264 Vac at 47-63 Hz.
Chasis mount, open frame design.
0°C to 50°C.
1.5A.
110W.
85% typical.
20 ms minimum.
