| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Temperature Coefficient | |
| Type | |
| Voltage |

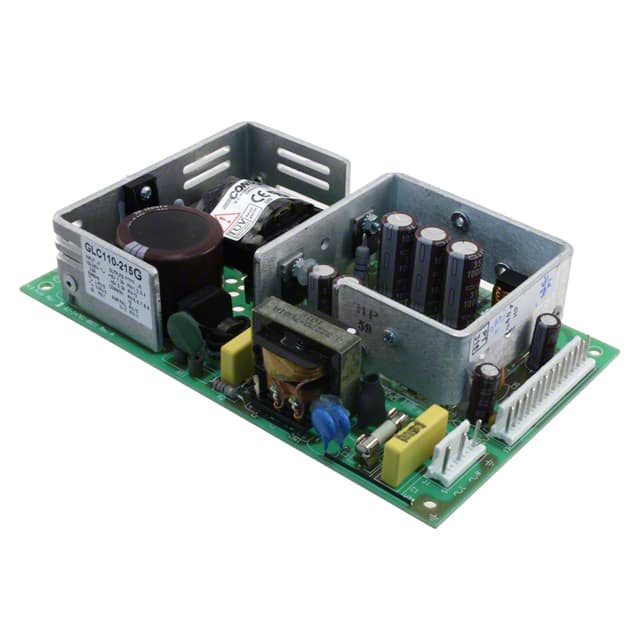

The SL Power Electronics GLC110-215G is a 110W AC/DC converter designed for various applications. This open-frame unit provides dual outputs of +/-15V, with a maximum current of 2.5A on the primary output. It operates with a universal input voltage range of 90-264 VAC and boasts an efficiency of up to 85%.
Key features include adjustable output voltage and built-in EMI filtering. The converter is designed for chassis mounting and has dimensions of 177.8mm x 108.0mm x 33.0mm. It operates within a temperature range of 0°C to 50°C and includes overvoltage and overload protection.
Safety approvals include CE, CSA, TUV, and UR, making it suitable for commercial and ITE applications. The unit also features a power fail signal that triggers before output voltage drops significantly upon AC power loss.
90-264 VAC.
+15V and -15V.
2.5A on each output.
110W with forced air cooling, 75W under natural convection.
0°C to 50°C.
Open frame, chassis mount.
Overvoltage protection on main output and overload protection with power limiting.
