| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

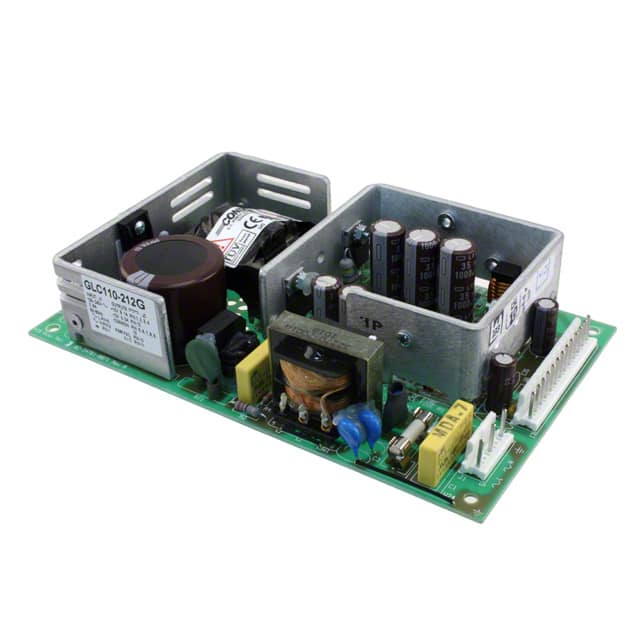

The SL Power Electronics GLC110-212G is an open frame AC/DC converter designed for various applications. It provides a total output power of 110W, with dual outputs of +12V and -12V. The converter operates with a universal input voltage range of 90-264 VAC and boasts an efficiency of up to 85%.
Key electrical specifications include a maximum output current of 6.3A for the +12V output and 2.5A for the -12V output. It features adjustable output, universal input, and built-in EMI filtering for compliance. The operating temperature range is from 0°C to 50°C.
Mechanically, the GLC110-212G is designed for chassis mounting and has dimensions of 177.8mm x 108.0mm x 33.0mm. It is approved by CE, CSA, TUV, and UR agencies, meeting commercial safety standards like UL60950-1 and EN60950-1.
This power supply is suitable for ITE (Commercial) applications requiring a reliable and efficient power source in a compact, open frame form factor.
The GLC110-212G provides +12V at 6.3A and -12V at 2.5A.
The input voltage range is 90-264 VAC.
The operating temperature range is 0°C to 50°C.
It holds commercial safety approvals UL60950-1, CSA22.2 No. 950-95, EN60950-1 and medical safety approvals UL2601-1, CSA-C22.2 No. 601.1, EN60601-1.
The typical efficiency is 85%.
The minimum hold-up time is 20 ms at full load and nominal line (120 Vac).
It is an open frame design for chassis mount installation.
