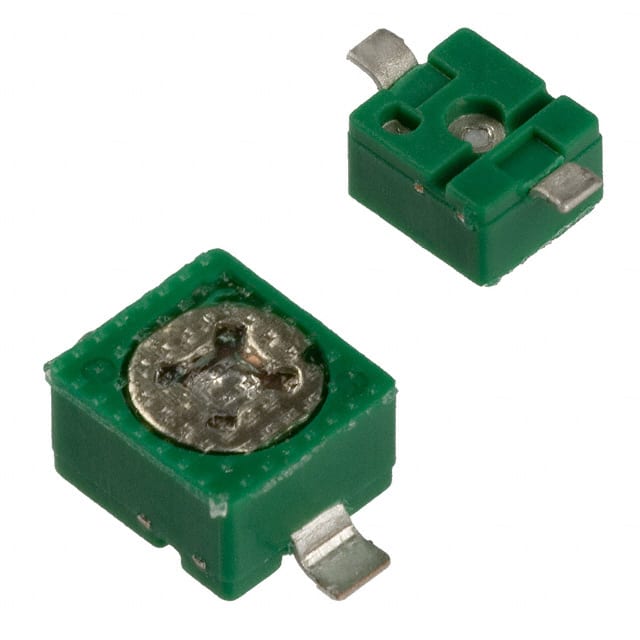

GKG30067-07 Ceramic dielectric trimmer capacitor with 6.5-30pF capacitance range and 100V DC rating. Surface mount package with top adjustment.
Mfr Part #:

GKG30067-07

Available from 1 distributors
Mfr Name: Sprague-Goodman
Sprague-Goodman
Ceramic dielectric trimmer capacitor with 6.5-30pF capacitance range and 100V DC rating. Surface mount package with top adjustment.
✓ Total Stock: 425 pcs

GKG30067-07 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
425 pcs
On Request
425 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GKG30067-07 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Capacitance Range
Dielectric Material
Features
Height
Lead Style
Length
Mounting Type
Operating Temperature
Q @ Freq
Voltage
Width
View Similar Products (0)

GKG30067-07 Description

Short technical summary and product information.

The GKG30067-07 is a ceramic dielectric trimmer capacitor from Sprague-Goodman. It offers a capacitance range of 6.5 to 30 pF with a rated DC voltage of 100 V. The capacitor features a minimum Q factor of 300 at 1 MHz, indicating low losses suitable for RF and tuning applications.



Designed for surface mount assembly, the component measures 4.50 mm in length, 4.00 mm in width, and 2.70 mm in height. It has a top adjustment mechanism for fine-tuning capacitance after installation. The operating temperature range is -25°C to 85°C, making it suitable for general-purpose environments.



This trimmer capacitor is constructed with a ceramic dielectric and is intended for general purpose use. It is RoHS3 compliant and has an MSL rating of 1 (unlimited). The part is available in tape and reel packaging for automated assembly.

GKG30067-07 Quick Information

Product Type: Trimmer Capacitor
Series: SURFTRIM GKG
Canonical Name: Trimmer Capacitor, Ceramic Dielectric, 6.5-30pF, 100V, Surface Mount
Subcategory: Ceramic Dielectric Trimmer

GKG30067-07 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GKG30067-07 Features

  • Capacitance range from 6.5 to 30 pF.
  • Rated for 100 V DC operation.
  • Minimum Q factor of 300 at 1 MHz.
  • Surface mount package with top adjustment.
  • Ceramic dielectric construction.

GKG30067-07 Applications

  • Used for RF circuit tuning applications.
  • Suitable for impedance matching networks.
  • Ideal for general purpose trimming needs.

GKG30067-07 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance range of the GKG30067-07?

6.5 to 30 pF.

What is the rated voltage of the GKG30067-07?

100 V DC.

What is the Q factor at 1 MHz?

Minimum 300 at 1 MHz.

What is the operating temperature range?

-25°C to 85°C.

How is the capacitance adjusted?

Top adjustment.

What is the mounting type?

Surface mount.

Is the GKG30067-07 RoHS compliant?

RoHS3 Compliant (unverified).
