| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
695 pcs
|
695 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Capacitance Range | |
| Dielectric Material | |
| Dielectric Withstanding Voltage | |
| Features | |
| Height | |
| Insulation Resistance | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Voltage | |
| Width |

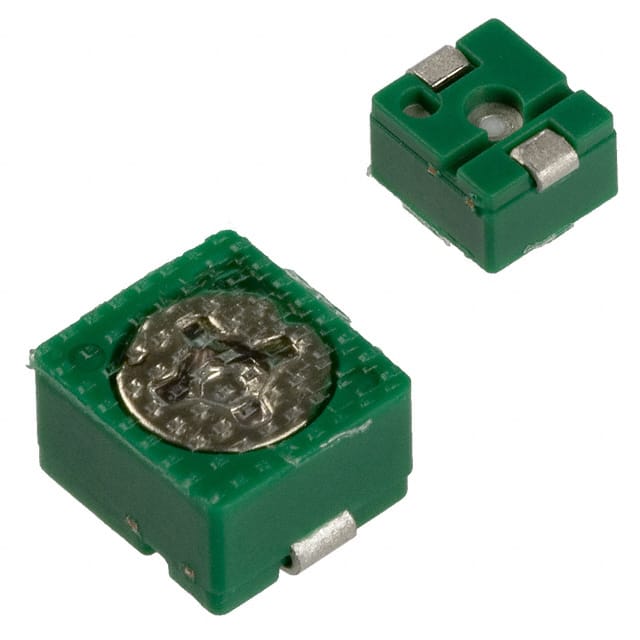

The Sprague-Goodman GKG30066-07 is a ceramic dielectric trimmer capacitor designed for surface mount applications. It offers a capacitance adjustment range from 6.5 pF to 30 pF, with a rated voltage of 100 VDC. The component features a top adjustment type and is built with a ceramic dielectric material, ensuring stable performance across its operating temperature range of -25°C to +85°C.
This trimmer capacitor provides a minimum Q factor of 300 at 1 MHz, indicating low losses suitable for RF tuning and impedance matching circuits. The dielectric withstanding voltage is 220 VDC, and the minimum insulation resistance is 10,000 megohms, supporting reliable operation in demanding environments.
The device measures 4.50 mm in length, 4.00 mm in width, and 2.70 mm in height, making it compact for space-constrained PCB layouts. It is intended for general-purpose applications where precise capacitance adjustment is required.
The capacitance range is 6.5 to 30 pF.
The rated voltage is 100 VDC.
The operating temperature range is -25°C to +85°C.
RoHS3 compliance is indicated but unverified.
The dimensions are 4.50 mm length, 4.00 mm width, and 2.70 mm height.
The minimum Q factor is 300 at 1 MHz.
