| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,300 pcs
|
6300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Capacitance Range | |
| Dielectric Material | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

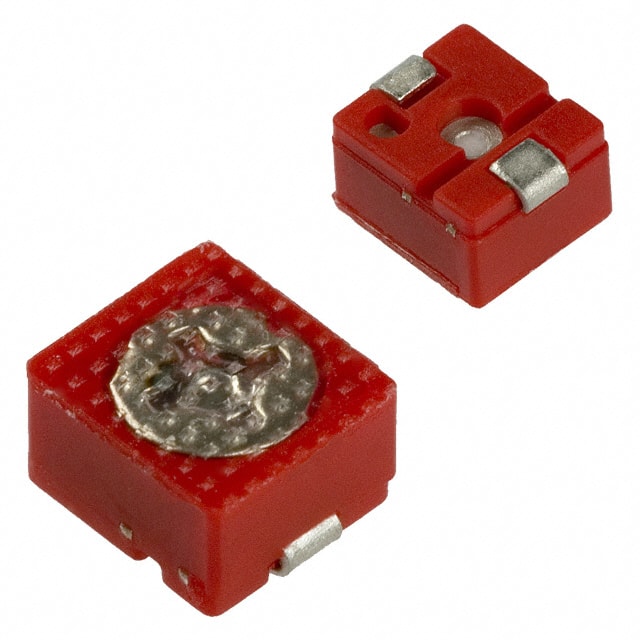

The GKG20066-07 is a ceramic dielectric trimmer capacitor manufactured by Sprague-Goodman. It offers a capacitance range of 4.5 pF to 20 pF with a voltage rating of 100 VDC. The device features a minimum Q factor of 500 at 10 MHz, indicating low loss suitable for RF applications.
This trimmer capacitor is designed for surface mount technology (SMT) with a compact package measuring 4.50 mm x 4.00 mm x 2.70 mm. It has a top adjustment mechanism, allowing easy tuning after assembly. The operating temperature range is -25°C to 85°C.
The component is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is supplied in tape and reel packaging for automated assembly. Typical applications include tuning circuits, oscillators, and filters where precise capacitance adjustment is required.
The capacitance range is 4.5 pF to 20 pF.
The voltage rating is 100 V.
The operating temperature range is -25°C to 85°C.
Yes, it is RoHS3 compliant (unverified).
The minimum Q is 500 at 10 MHz.
It has a top adjustment type.
It is a surface mount component.
