| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Capacitance Range | |
| Dielectric Material | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

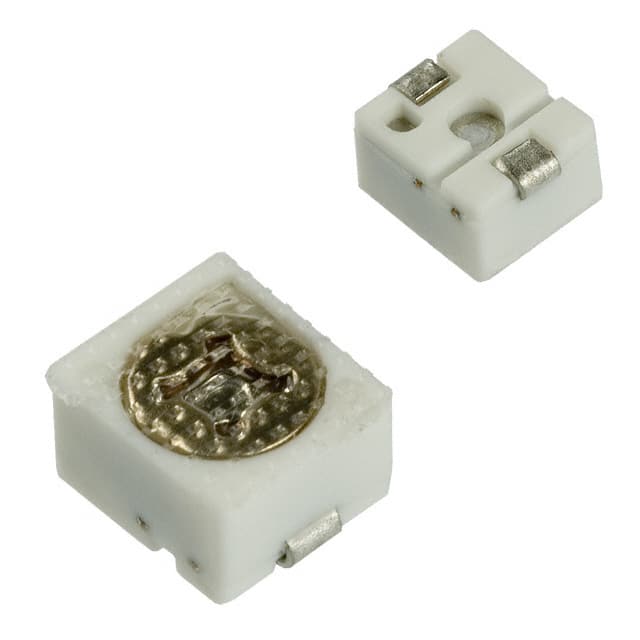

The GKG10066-07 is a ceramic dielectric trimmer capacitor from Sprague-Goodman, part of the GKG series. It offers a capacitance range of 3 to 10pF with a voltage rating of 100V DC. The component features a quality factor (Q) of 500 at 10MHz, indicating good performance for RF and high-frequency applications. The dielectric material is ceramic, and the adjustment type is top, allowing easy tuning after installation.
This trimmer capacitor is designed for surface mount technology (SMT) with dimensions of 4.50mm length, 4.00mm width, and 2.70mm height. It operates over a temperature range of -25°C to 85°C and is intended for general purpose use. The component is packaged in a surface mount configuration, suitable for automated assembly.
With its compact size and reliable electrical characteristics, the GKG10066-07 is suitable for frequency trimming, impedance matching, and other tuning applications in electronic circuits. The top adjustment design provides accessibility for manual calibration in production or service environments.
The capacitance range is 3 to 10pF.
The voltage rating is 100V DC.
The operating temperature range is -25°C to 85°C.
The adjustment type is top adjustment.
The Q factor is 500 at 10MHz.
RoHS3 compliance is reported but unverified.
The mounting type is surface mount (SMD).
