| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
480 pcs
|
480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
174 pcs
$0.02
|
174 pcs |
$0.02
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Features | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

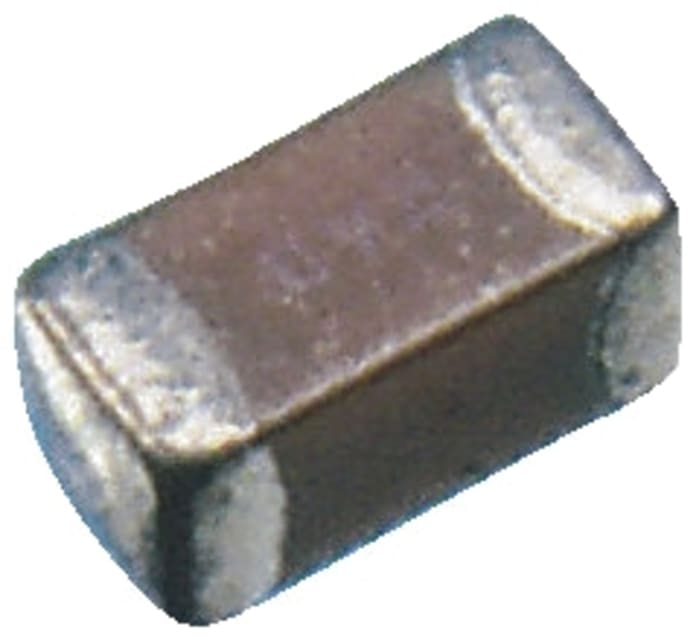

The Murata GJM1555C1H2R0CB01D is a chip monolithic ceramic capacitor from the High-Q type series. It offers a capacitance of 2 pF with a tolerance of ±0.25 pF and a rated voltage of 50V DC. The capacitor features a C0G (NP0) temperature coefficient, ensuring stable capacitance over a temperature range of -55°C to 125°C with a capacitance change of 0±30 ppm/°C. This component is designed for surface mount technology (SMT) and comes in a compact 0402 (1005 metric) package with dimensions of 1.00mm x 0.50mm and a maximum thickness of 0.55mm. It is ideal for RF, microwave, and high frequency circuits due to its high Q factor (≥400+20C for capacitance ≤30pF) and low loss characteristics. The capacitor is supplied in tape and reel packaging, with 10,000 pieces per reel on a 180mm reel. It is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. The part is suitable for reflow soldering only.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.02 | $0.02 |
| 100+ | $0.02 | $0.02 |
| 500+ | $0.02 | $0.02 |
| 1,000+ | $0.01 | $0.01 |
| 2,500+ | $0.01 | $0.01 |
| 5,000+ | $0.01 | $0.01 |
| 10,000+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 pF.
50V DC.
C0G (NP0) with 0±30 ppm/°C.
±0.25 pF.
0402 (1005 metric).
Q ≥ 400+20C (C in pF) for capacitance ≤30pF.
-55°C to 125°C.
