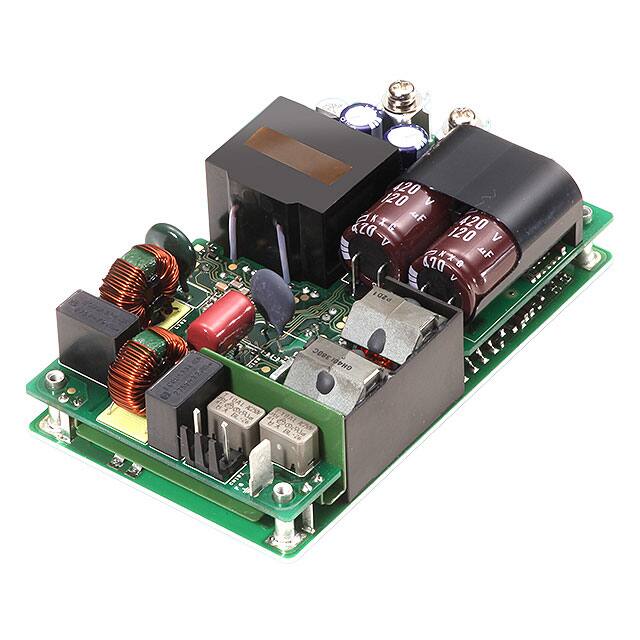

The Cosel GHA300F-24 is an AC-DC power supply designed for ITE (Commercial) and Medical equipment applications. It offers a 24V output voltage and a maximum output wattage of 100W under convection cooling, increasing to 300W with forced air.
This open-frame converter features a universal input voltage range of 90-264 VAC and includes Power Factor Correction (PFC). Its compact 3"x5" footprint (127.0mm x 76.2mm x 35.0mm) makes it suitable for space-constrained designs. The operating temperature range is -20°C to 80°C with derating.
Safety approvals include CE, cURus, and DEMKO, supporting its use in demanding applications. The unit is designed for chassis mounting and provides essential features like adjustable output voltage and low leakage current.
The nominal output voltage is 24V, with an adjustment range from 21.60V to 26.40V.
It delivers up to 300W with forced air cooling or 100W using natural convection.
The unit operates within a temperature range of -20°C to 80°C with derating applied.
The converter utilizes a chassis mount mechanical configuration.
The device accepts an input voltage range of 90 to 264VAC at 50/60Hz.
