| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrier Type | |
| Bottom Termination | |
| Color | |
| Current Rating (Amps) | |
| Features | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Number of Rows | |
| Number of Wire Entries | |
| Pitch | |
| SVHC Present | |
| Terminal Block Type | |
| Top Termination | |
| Voltage Rating | |
| Wire Gauge |

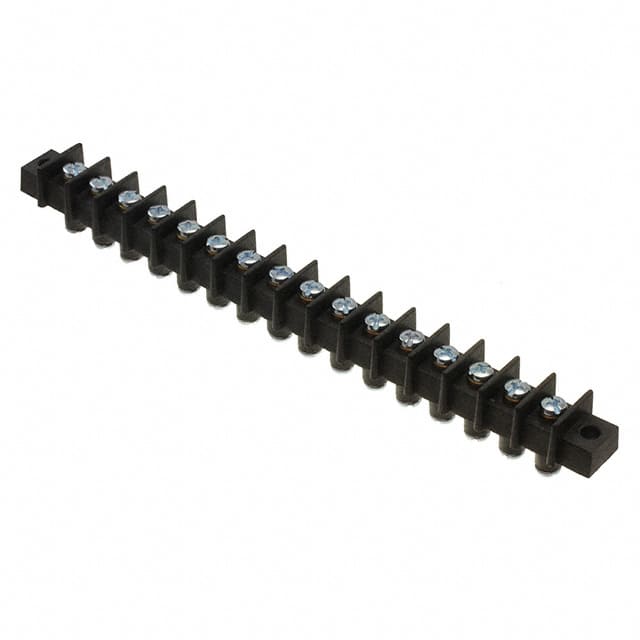

The Curtis Industries GFTSX-16 is a 16-circuit barrier terminal block designed for reliable wire termination in industrial and electronic applications. It features a single row of 16 screw terminals with a 0.438" (11.12mm) pitch, accepting wire gauges from 12 to 22 AWG. The block is rated for 20A at up to 600V, making it suitable for power distribution and control circuits.
The terminal block utilizes a dual-wall barrier design for enhanced creepage and clearance between circuits. The top termination uses screws, while the bottom termination is threaded and insulated, allowing for feed-through or panel mounting. The body is molded from durable thermoset phenolic material, providing high mechanical strength and electrical insulation.
The GFTSX-16 includes a flange for secure chassis or panel mounting. The internal terminals are unplated brass inserts with No. 6-32 plated steel screws, ensuring reliable electrical connections. This barrier block is UL recognized and CSA certified, meeting safety standards for industrial equipment.
Typical applications include power supplies, industrial controls, HVAC systems, and test equipment where multiple circuits need to be terminated in a compact, organized manner.
| Qty | Low | High |
|---|---|---|
| 1+ | $42.97 | $42.97 |
| 10+ | $31.19 | $31.19 |
| 25+ | $28.17 | $28.17 |
| 50+ | $26.41 | $26.41 |
| 100+ | $25.01 | $25.01 |
| 250+ | $23.61 | $23.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 circuits.
0.438" (11.12mm).
20A.
600V.
Chassis or panel mounting with flange.
12 to 22 AWG.
Screw termination with No. 6-32 plated steel screws.
