GFR4B30030
Altech Corporation
The Altech Corporation GFR4B30030 is a 3-pole ground fault circuit breaker rated for 30A and 480V AC. It features a 30mA residual current sensitivity and a B trip curve.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage | |
| Voltage Rating |

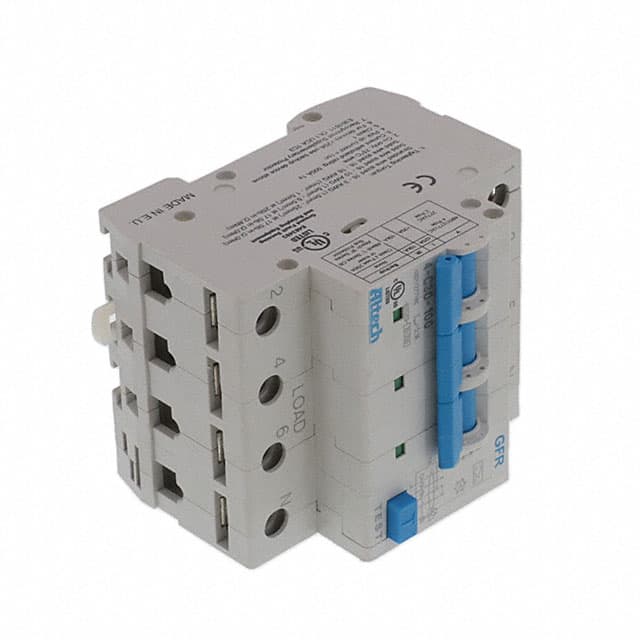

The Altech Corporation GFR4C30100 is a robust 3-pole ground fault circuit breaker (GFCI) rated for 480V AC and 30A. It offers essential protection against short circuits, overloads, and ground faults, with a residual operating current sensitivity of 100mA. This breaker is designed for DIN rail mounting, ensuring a secure and convenient installation in various electrical panels and enclosures.
Key electrical specifications include a rated short circuit capacity of 10kA and overload tripping characteristics of B, C, and D curves, providing flexibility for different load requirements. The device has a mechanical life of 10,000 switching operations and an electrical life of 6,000 switching operations, indicating durability and long-term performance. It operates within an ambient temperature range of -25°C to 40°C.
This circuit breaker is UL489 Listed and UL1077 recognized, meeting stringent safety and performance standards. Its compliance with RoHS3 standards and MSL 1 classification further highlights its suitability for a wide range of applications. The GFR4C30100 is an ideal choice for applications requiring reliable ground fault protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage for the GFR4C30100 is 480V AC.
The current rating is 30A.
The GFR4C30100 has 3 poles.
The residual operating current sensitivity is 100mA.
The mounting type is DIN Rail.
The overload tripping characteristics are B, C, and D.
The ambient operating temperature range is -25°C to 40°C.
