| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage | |
| Voltage Rating |

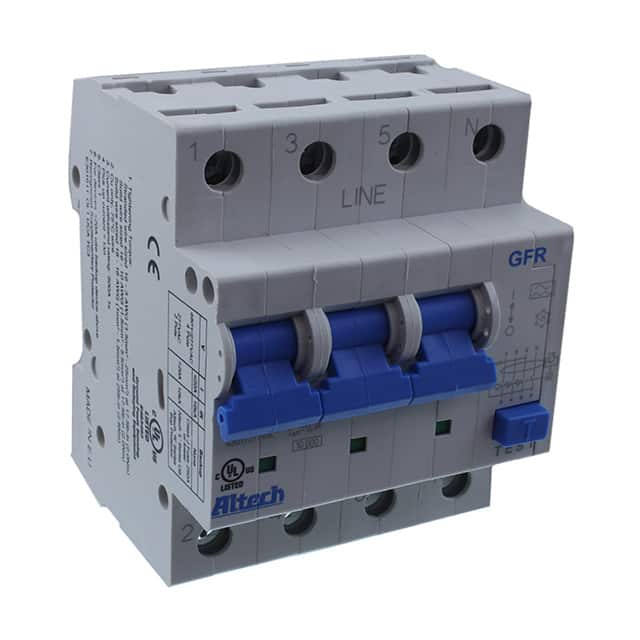

The Altech Corporation GFR4C20100 is a 3-pole ground fault circuit breaker (RCBO) designed for robust protection in electrical systems. It features a 20A current rating and a 480V AC voltage rating, suitable for demanding applications.
This breaker provides comprehensive protection against short circuits, overloads, and AC ground faults, including pulsating DC ground faults. It has a rated residual operating current of 100mA and a short circuit capacity of 10kA, ensuring safety and reliability.
The GFR4C20100 is UL489 listed and UL1077 recognized, meeting stringent industry standards. It is designed for DIN rail mounting, facilitating easy installation in control panels and distribution boards. The breaker operates within an ambient temperature range of -25°C to 40°C, making it suitable for various environmental conditions.
With a mechanical life of 10,000 switching operations and an electrical life of 6,000 switching operations, this RCBO is built for durability and long-term performance in commercial and industrial settings.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 20A.
The voltage rating is 480V AC.
It has 3 poles.
The rated residual operating current is 100mA.
The rated short circuit capacity is 10kA.
The available overload trip curves are B, C, and D.
The ambient temperature range is -25°C to 40°C.
