| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

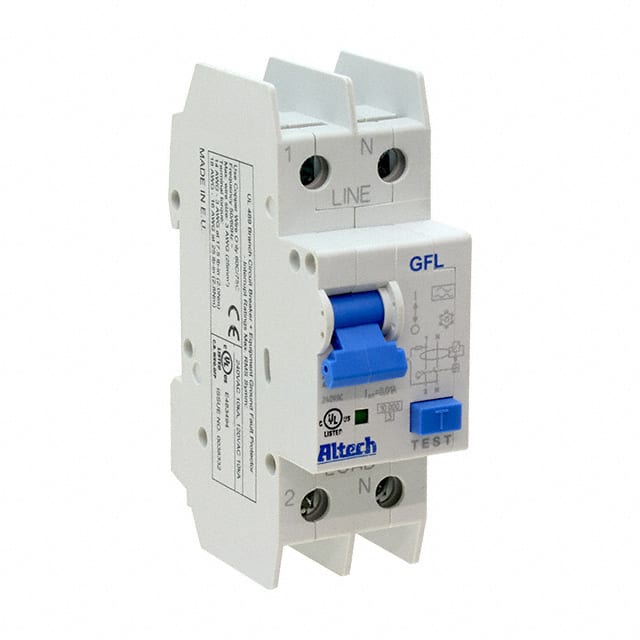

The Altech Corporation GFL2C200302 is a 2-pole Branch Circuit Breaker with Equipment Ground Fault Protection (RCBO) from the GFL Series. It is designed to provide protection against short circuits, overloads, and both AC and pulsating DC ground faults.
This circuit breaker features a 20A rated current and a 240V AC rated voltage. It has a rated residual operating current of 30mA and a rated short circuit capacity of 10kA. The overload tripping characteristics include B, C, and D curves, offering flexibility for various applications.
Designed for DIN rail mounting, the GFL2C200302 ensures easy installation in electrical panels. It has an electrical life of 6000 switching operations and a mechanical life of 10000 switching operations, indicating robust durability. The operating ambient temperature range is -25°C to 40°C.
Key specifications include a 10kA UL489 listing, making it suitable for demanding applications. The device also supports cable sizes from 14 to 3 AWG with a specified tightening torque, ensuring secure connections.
The rated current is 20A.
The rated voltage is 240V AC.
The rated residual operating current is 30mA.
The rated short circuit capacity is 10kA.
The overload tripping characteristics are B, C, and D.
The mounting type is DIN Rail.
