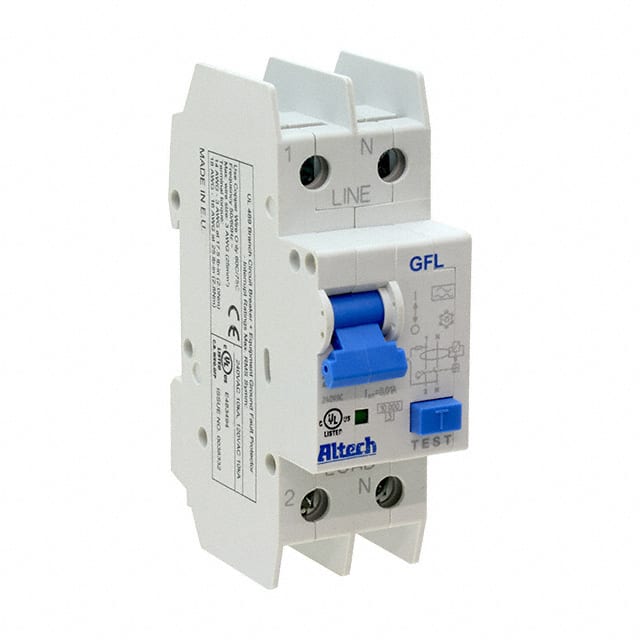

The Altech Corporation GFL Series GFL2B150102 is a 2-pole Ground Fault Circuit Breaker (GFCI) designed for protection against short circuits, overloads, and ground faults. It operates at a rated voltage of 240V AC and a rated current of 15A, with a residual operating current sensitivity of 10mA.
This circuit breaker offers dual pole switching, disconnecting both live and neutral conductors. It is UL489 listed and features overload tripping characteristics of B, C, and D curves. The device is suitable for use with cable sizes ranging from 14 to 3 AWG and has a rated short circuit capacity of 10kA.
Designed for DIN rail mounting, the GFL2B150102 has an electrical life of 6000 switching operations and a mechanical life of 10000 switching operations. It operates within an ambient temperature range of -25°C to 40°C. The GFL Series provides protection against AC ground faults and pulsating DC ground faults, making it a versatile component for various electrical protection needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 15A.
The rated voltage is 240V AC.
The rated residual operating current is 10mA.
It has 2 poles.
The overload tripping characteristics are B, C, and D.
The rated short circuit capacity is 10kA.
The ambient temperature range is -25°C to 40°C.
