| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

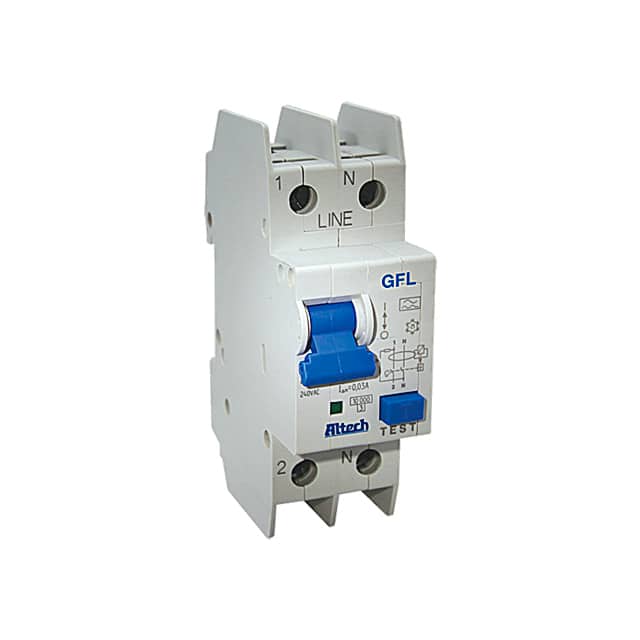

The Altech Corporation GFL2B100102 is a 2-pole Residual Current Breaker with Overcurrent (RCBO) designed for combined branch circuit breaker and equipment ground fault protection. It offers protection against short circuits, overloads, AC ground faults, and pulsating DC ground faults.
Key electrical specifications include a rated current of 10A, a rated voltage of 240V AC, and a rated residual operating current of 10mA. The device has a high rated short circuit capacity of 10kA and supports overload tripping curves B, C, and D. It operates within a rated frequency of 50/60Hz.
This RCBO is designed for DIN rail mounting and features a lever actuator. It operates within an ambient temperature range of -25°C to 40°C. The electrical life is rated for 6000 switching operations, and the mechanical life is rated for 10000 switching operations. Cable connections accommodate sizes from 18 to 16 AWG with a tightening torque of 25 lb-in (2.8 Nm).
Compliance is indicated by cULus and UL489 approvals. The RoHS status is listed as RoHS3 Compliant, MSL as 1 Unlimited, and REACH as REACH Unaffected. This component is suitable for applications requiring reliable protection against electrical faults.
The rated current is 10A.
The rated voltage is 240V AC.
The rated residual operating current is 10mA.
The rated short circuit capacity is 10kA.
The overload tripping curves supported are B, C, and D.
The ambient temperature range is -25°C to 40°C.
It is designed for DIN rail mounting.
