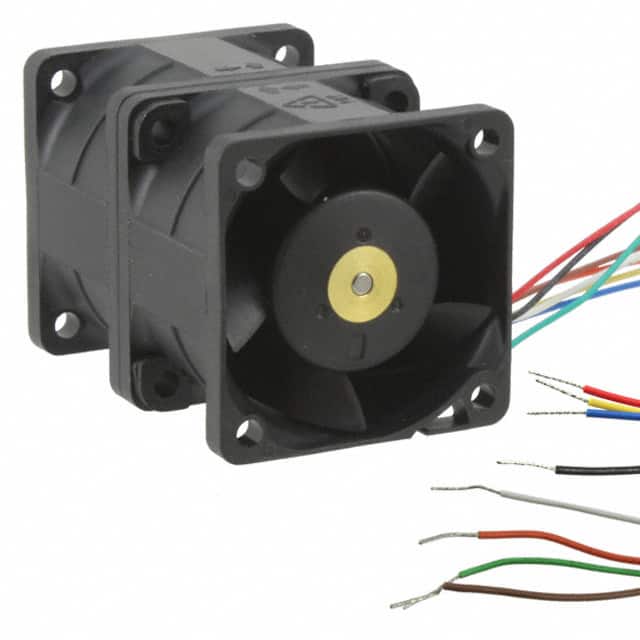

The Delta Electronics GFC0412DS-DF00 is a dual tubeaxial fan designed for 12 VDC operation. It measures 40 mm by 40 mm with a 56 mm width, making it suitable for space-constrained cooling applications. The fan delivers an airflow of 32.2 CFM (0.902 m³/min) and a static pressure of 2.631 in H2O (655.4 Pa), providing effective cooling in high-impedance environments.
The fan operates at 16000 rpm on the front rotor and 15400 rpm on the rear rotor, generating a noise level of 64.5 dB(A). It consumes 15.6 W of power. The dual rotor design enhances airflow and pressure performance compared to single rotor fans.
Mechanically, the fan uses ball bearings for reliability and longevity. It includes features such as locked rotor protection, PWM control, and a speed sensor (tachometer) for monitoring and control. The fan is approved to CE, cURus, and TUV standards.
The fan operates over a temperature range of -10 to 60°C. It has four wire leads per fan for termination, supporting PWM and tachometer signals. This fan is suitable for applications requiring high static pressure and precise speed control.
| Qty | Low | High |
|---|---|---|
| 1+ | $38.22 | $38.22 |
| 10+ | $35.93 | $35.93 |
| 100+ | $34.02 | $34.02 |
| 1,000+ | $32.10 | $32.10 |
| 10,000+ | $30.19 | $30.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12 VDC.
The operating temperature range is -10 to 60°C.
The fan provides 32.2 CFM (0.902 m³/min) airflow and 2.631 in H2O (655.4 Pa) static pressure.
The noise level is 64.5 dB(A).
The fan measures 40 mm x 40 mm with a width of 56 mm.
The fan includes locked rotor protection, PWM control, and a speed sensor (tachometer).
The fan is approved to CE, cURus, and TUV standards.
