| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Current Rating | |
| Dimensions | |
| Failure Rate | |
| Material | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Standards | |
| Type | |
| Voltage Rating |

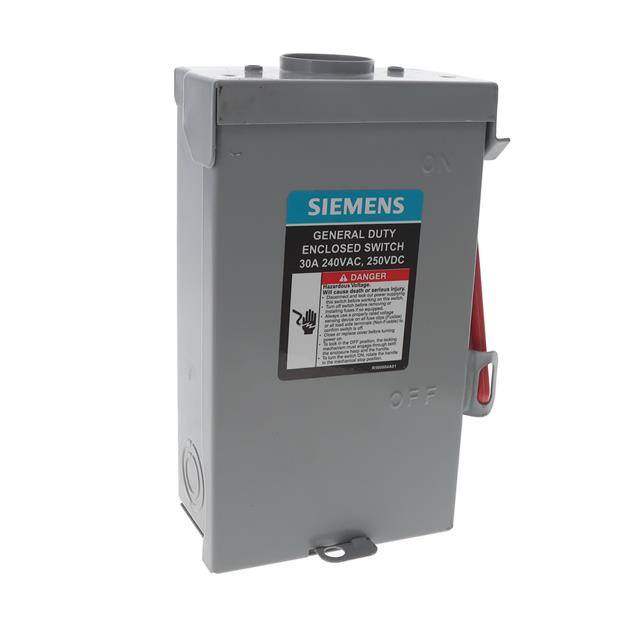

The Siemens GF221NRA is a General Duty Safety Switch designed for various applications including motors, air conditioners, appliances, and lighting loads. It operates at 240V AC and has a current rating of 30A, with 2 poles and 3 wires.
This switch features a Type VBII Double Break mechanism and comes in an A Series. The enclosure is NEMA 3R rated, making it suitable for outdoor applications. It is constructed from durable steel and is designed for surface mounting.
The operating temperature range for the GF221NRA is from -29 to 85 degrees Celsius. Its dimensions are 8.25 inches in height, 9.06 inches in width, and 4.75 inches in depth. The switch complies with UL98 standards.
The Siemens GF221NRA safety switch has a voltage rating of 240V AC.
The GF221NRA safety switch has a current rating of 30A.
The Siemens GF221NRA has a NEMA 3R enclosure.
The operating temperature range for this safety switch is -29 to 85 degrees Celsius.
The dimensions of the Siemens GF221NRA safety switch are 8.25 inches in height, 9.06 inches in width, and 4.75 inches in depth.
The RoHS Status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
