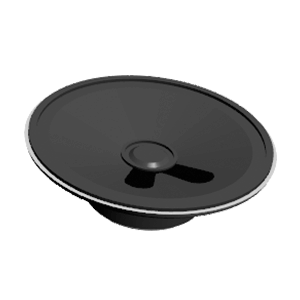

GF0661 The Same Sky GF0661 is a standard speaker featuring a 66mm round frame, 8Ω impedance, and 0.3W input power. It delivers a sound pressure level of 83dB minimum.
Mfr Part #:

GF0661

Available from 1 distributors
Mfr Name: Same Sky
Same Sky
The Same Sky GF0661 is a standard speaker featuring a 66mm round frame, 8Ω impedance, and 0.3W input power. It delivers a sound pressure level of 83dB minimum.
✓ Total Stock: 2 pcs
$ Price Range: $0.99

GF0661 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GF0661 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Frequency Response
Mounting Type
Operating Temperature
SVHC Present
Terminal Type
Termination Style
Weight
View Similar Products (0)

GF0661 Description

Short technical summary and product information.

The Same Sky GF0661 is a standard speaker designed for various audio applications. It features a 66mm round frame and a paper cone, contributing to its acoustic properties.



Electrically, this speaker operates with a nominal impedance of 8Ω and an input power rating of 0.3W, with a maximum of 0.5W. The resonant frequency is typically around 300Hz, and it offers a frequency response up to 8,000Hz. The sound pressure level (SPL) ranges from a minimum of 83dB to a maximum of 89dB under specified conditions.



Mechanically, the speaker has dimensions of Ø66 x 20mm and utilizes a ferrite magnet. It is equipped with solder eyelet terminals for easy connection. The operating temperature range is from -25°C to 70°C.



This component is RoHS3 compliant and has an MSL rating of 1 Unlimited. It is suitable for applications requiring a reliable audio output within its specified parameters.

GF0661 Quick Information

Product Type: Speaker
Series: GF
Canonical Name: GF0661 Speaker
Subcategory: Standard Speakers

GF0661 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GF0661 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

GF0661 Features

  • 66 mm round frame speaker
  • 8 Ω impedance
  • 0.3 W input power
  • 83 dB minimum sound pressure level
  • Paper cone with ferrite magnet

GF0661 Applications

  • Audio alerting in consumer electronics.
  • Sound output for alarm systems.
  • Voice prompt speaker in appliances.
  • Annunciator for industrial controls.

GF0661 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the GF0661 speaker?

The nominal impedance is 8 Ω, with a minimum of 6.8 Ω and maximum of 9.2 Ω, tested at 0.8 kHz and 1.0 V.

What is the resonant frequency of the GF0661?

The typical resonant frequency (Fo) is 300 Hz, with a range of 240 Hz to 360 Hz, tested at 1.0 V.

What is the sound pressure level of the GF0661?

The typical SPL is 86 dB, with a range of 83 dB to 89 dB, measured at 0.3 W and 50 cm distance, averaged at 0.7, 0.9, 1.2, and 1.4 kHz.

What is the input power range of the GF0661?

The input power range is 0.3 W minimum to 0.5 W maximum.

What is the operating temperature range of the GF0661?

The operating temperature range is -25 °C to 70 °C.

What are the dimensions of the GF0661?

The dimensions are Ø66 mm x 20 mm, and the weight is 55 g.

What mounting and termination does the GF0661 use?

It uses through-hole mounting with solder eyelet terminals.
