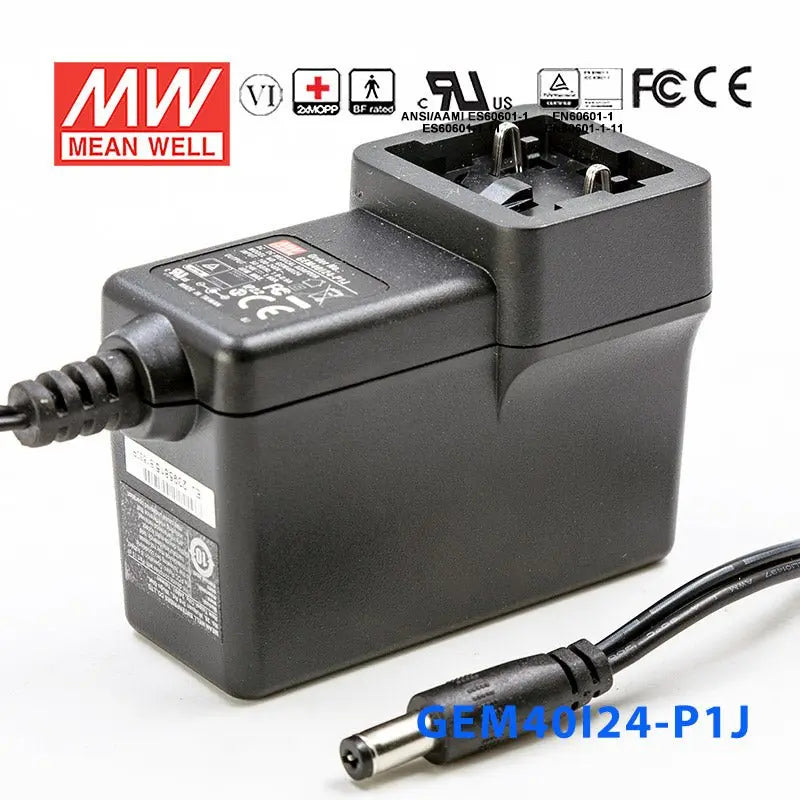

The Mean Well USA GEM40I24-P1J is a versatile 40W AC/DC wall mount adapter designed for various applications, including medical use. It provides a stable 24V output at a rated current of 1.66A.
This adapter operates within a wide input voltage range of 80V to 264VAC, making it suitable for international use. It meets Energy Efficiency Level VI standards and features medical safety approvals according to 60601-1 (2xMOPP), along with extremely low leakage current. The unit is designed as Class II power, meaning it does not require an earth pin, and comes in a fully enclosed plastic case for protection.
Key electrical protections include short circuit, overload, and over-voltage safeguards. The operating temperature range is from -25°C to +70°C. The adapter utilizes a multi-blade input connector, sold separately, and features a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. It is backed by a 3-year warranty.
The GEM40I24-P1J provides a 24V output voltage at a rated current of 1.66A.
The power rating for the GEM40I24-P1J is 40W.
The GEM40I24-P1J accepts an input voltage range of 80V to 264VAC.
The operating temperature range for the GEM40I24-P1J is -25°C to +70°C.
Yes, the GEM40I24-P1J meets Energy Efficiency Level VI standards.
Yes, the GEM40I24-P1J is medically safety approved (2xMOPP) according to 60601-1.
The GEM40I24-P1J uses a barrel plug output connector with 2.1mm I.D. x 5.5mm O.D. x 11.0mm dimensions and positive center polarization.
