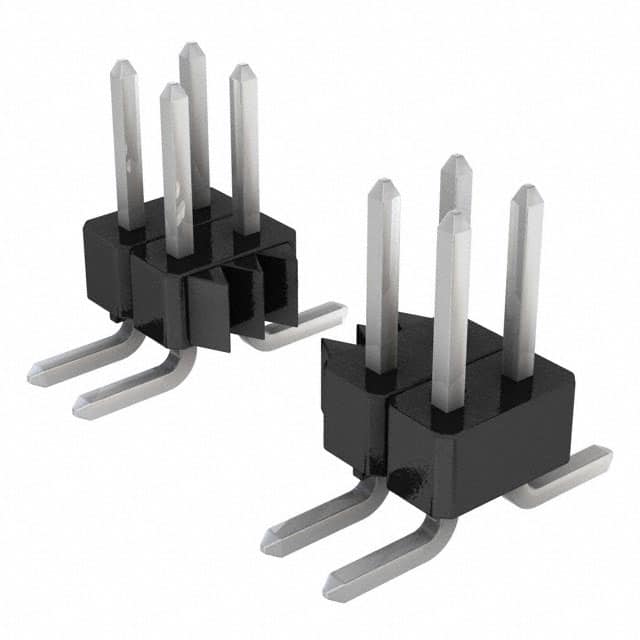

GEC06DABN-M30 Sullins Connector Solutions GEC06DABN-M30 is a 12 position, 2 row, 2.54mm pitch, surface mount male pin header breakaway connector rated for 3A.
Mfr Part #:

GEC06DABN-M30

Available from 1 distributors
Mfr Name: Sullins Connector Solutions
Sullins Connector Solutions
Sullins Connector Solutions GEC06DABN-M30 is a 12 position, 2 row, 2.54mm pitch, surface mount male pin header breakaway connector rated for 3A.
✓ Total Stock: 50 pcs
$ Price Range: $0.82 - $1.57

GEC06DABN-M30 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GEC06DABN-M30 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

GEC06DABN-M30 Description

Short technical summary and product information.

The Sullins Connector Solutions GEC06DABN-M30 is a 12-position, 2-row, unshrouded male pin header with a 2.54mm pitch and row spacing. It features a surface mount termination style and phosphor bronze contacts with a 100 microinch tin finish. The insulation is black polyamide (PA9T) rated UL94 V-0.



The connector operates over a temperature range of -65°C to +150°C and is rated for 3A of current. It is suitable for board-to-board or cable-to-board applications where a push-pull fastening mechanism is acceptable. The breakaway design allows the header to be separated into smaller custom sections.



The part is supplied in a surface-mount package with solder terminations, making it appropriate for automated PCB assembly processes.

GEC06DABN-M30 Quick Information

Product Type: Rectangular Connector Header
Canonical Name: Sullins Connector Solutions GEC06DABN-M30 - 12 Position 2.54mm Pitch Surface Mount Male Pin Header
Subcategory: Breakaway

GEC06DABN-M30 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

GEC06DABN-M30 Estimated Pricing

Qty Low High
1+ $1.57 $1.57
10+ $1.34 $1.34
100+ $1.13 $1.13
500+ $1.01 $1.01
1,000+ $0.96 $0.96
5,000+ $0.86 $0.86
10,000+ $0.82 $0.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

GEC06DABN-M30 Features

  • 12 pos, 2 row, 2.54mm pitch header.
  • Surface mount SMT solder termination.
  • Rated 3A, UL94 V-0 insulation.
  • Phosphor bronze contacts with tin finish.
  • Breakaway design for custom lengths.

GEC06DABN-M30 Applications

  • Board-to-board PCB interconnections.
  • Cable-to-board wiring harnesses.
  • Prototyping and breakaway header needs.

GEC06DABN-M30 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the GEC06DABN-M30 have?

It has 12 positions loaded in 2 rows.

What is the pitch of this connector?

The contact pitch is 2.54mm (0.100 inches).

What is the current rating?

The connector is rated for 3A.

What is the mounting type?

It is surface mount with solder termination.

What is the operating temperature range?

The operating temperature range is -65°C to 150°C.

What material are the contacts made of?

The contacts are phosphor bronze with a tin finish.
