| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

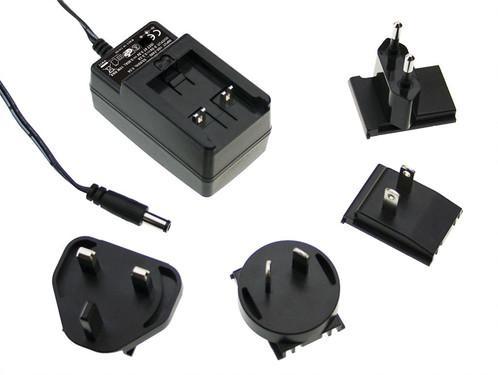

The Mean Well USA GE24I12-P1J is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a 12V output with a current rating of 2A, providing a total power of 24W. This adapter features Level VI efficiency and is suitable for international use.
The unit has a compact form factor, measuring 81.0mm in length, 43.0mm in width, and 40.5mm in height. It operates within a temperature range of -10°C to 50°C. The input connector is multi-blade (sold separately), and the output connector is a standard barrel plug with 2.1mm inner diameter and 5.5mm outer diameter. The adapter has a positive center polarization and a cord length of 1.00 meter.
Compliance is certified by CCC, CE, cULus, GS, and RCM. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1. The no-load power consumption is a maximum of 75mW.
12V DC.
Wall mount.
-10°C to 50°C.
2A.
24W.
Level VI.
CCC, CE, cULus, GS, RCM.
