| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Width |

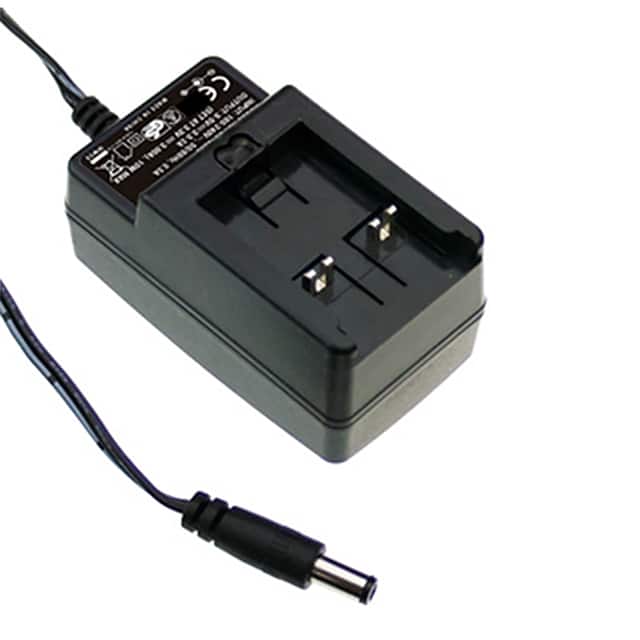

The Mean Well USA GE18I09-P1J is an AC/DC wall mount adapter designed for commercial ITE applications. It delivers a regulated 9V output at 2A with a total power of 18W. The adapter features Level VI efficiency and a maximum no-load power consumption of 75mW, meeting modern energy-saving requirements.
This wall mount unit (Class II) accepts multi-blade input plugs (sold separately) for international use. The output is provided via a standard barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, with a 1-meter cord length. Polarity is positive center.
The adapter operates over a temperature range of -10°C to 50°C. It holds multiple safety approvals including CCC, CE, cULus, GS, and RCM, ensuring compliance for global markets. The compact enclosure measures 81.0mm x 43.0mm x 40.5mm.
The output voltage is 9V and the output current is 2A, providing 18W of power.
It meets Level VI efficiency with a maximum no-load power consumption of 75mW.
The operating temperature range is -10°C to 50°C.
It uses a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, 11.0mm length, with positive center polarity.
RoHS compliance is indicated as RoHS3 compliant, but this is unverified.
It is approved by CCC, CE, cULus, GS, and RCM.
It is a wall mount (Class II) design.
