| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Turn On Time | |
| Voltage | |
| Width |

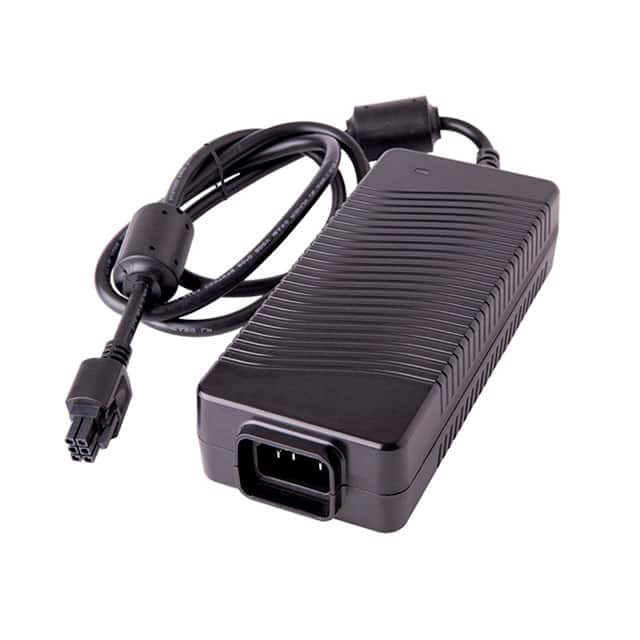

The SL Power Electronics GE150A1251N01 is a versatile 150W AC/DC desktop power adapter designed for both medical and ITE (Information Technology Equipment) applications. It features a single 12V output and accepts a wide input voltage range of 85 to 264 VAC, making it suitable for international use.
This power adapter boasts an IP22 rated enclosure and a compact size, measuring 6.46" x 2.83" x 1.46". It meets stringent safety and EMC standards, including IEC/EN/UL60601-1 (3rd edition) and IEC/EN/UL62368-1, as well as UL/EN/IEC60601-1-2 for EMC. It also complies with DoE Efficiency Level VI and CoC Tier 2 requirements, ensuring energy efficiency.
Key features include over-temperature, overload, and short-circuit protection with auto-recovery, and a minimum MTBF of over 250,000 hours. The adapter utilizes an IEC 320-C8 input connector and a 6-position rectangular output connector.
The adapter provides a 12V DC output and is rated up to 150W.
The adapter accepts 85 to 264 VAC at 47 to 63 Hz.
-20°C to 50°C.
It is a desktop (Class II) style adapter with an IEC 320-C8 input connector and a rectangular 6-position output connector.
It meets DoE Level VI and CoC Tier 2 requirements, with typical efficiency above 88% and no-load input power below 0.150W.
It is approved to IEC/EN/UL60601-1 3rd edition and EN/IEC/UL62368-1.
It includes overvoltage protection (130-150% of output voltage, hiccup mode), overload protection (125-180% of rating, hiccup mode), short circuit protection with auto-recovery, and overtemperature shutdown with auto-recovery.
