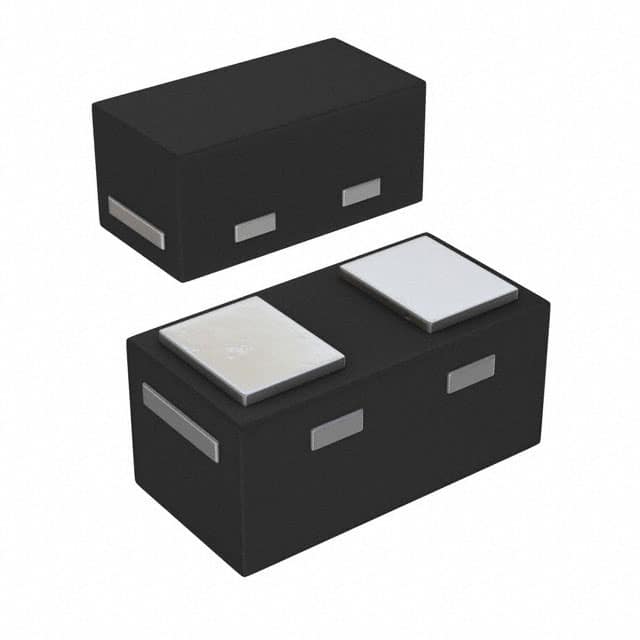

GDZ3V6LP3-7 Zener diode with 3.6V nominal voltage, 250mW power dissipation, and ±5% tolerance. Surface mount package X3-DFN0603-2.
Mfr Part #:

GDZ3V6LP3-7

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
Zener diode with 3.6V nominal voltage, 250mW power dissipation, and ±5% tolerance. Surface mount package X3-DFN0603-2.
✓ Total Stock: 30,000 pcs
$ Price Range: $0.11

GDZ3V6LP3-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
30,000 pcs
$0.11 ℹ
Qty Price
0+ 0.11
30000 pcs $0.11
QtyPrice
0+ 0.11
1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GDZ3V6LP3-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Halogen Free
Lead Style
Mounting Type
Operating Temperature
Power
SVHC Present
Storage Temperature
Supplier Device Package
Tape & Reel
Tolerance
Voltage
Weight
View Similar Products (0)

GDZ3V6LP3-7 Description

Short technical summary and product information.

The GDZ3V6LP3-7 is a Zener diode from Diodes Incorporated, part of the GDZ2V7LP3 to GDZ24LP3 series. It provides a nominal Zener voltage of 3.6V with a tolerance of ±5%, tested at 5mA. The device is rated for a maximum power dissipation of 250mW at 25°C ambient temperature.



This diode is housed in an ultra-small leadless surface mount package (X3-DFN0603-2) measuring 0.6 x 0.3mm with a low profile of 0.3mm. It features a maximum reverse leakage current of 10µA at 1V reverse voltage. The operating junction temperature range is -55°C to +150°C.



The component is RoHS3 compliant, lead-free, and halogen-free (green device). It is qualified to AEC-Q101 standards for high reliability and has a moisture sensitivity level of 1 (unlimited). The package is molded plastic with UL 94V-0 flammability rating and matte tin over copper leadframe terminals.

GDZ3V6LP3-7 Quick Information

Product Type: Zener Diode
Series: GDZ2V7LP3 - GDZ24LP3
Canonical Name: GDZ3V6LP3-7 Zener Diode
Subcategory: Single Zener Diode

GDZ3V6LP3-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead Free

GDZ3V6LP3-7 Estimated Pricing

Qty Low High
1+ $0.25 $0.25
10+ $0.15 $0.15
100+ $0.09 $0.09
500+ $0.07 $0.07
1,000+ $0.05 $0.05
5,000+ $0.05 $0.05
10,000+ $0.04 $0.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

GDZ3V6LP3-7 Features

  • 3.6V nominal Zener voltage with ±5% tolerance.
  • 250mW power dissipation at 25°C ambient.
  • Ultra-small X3-DFN0603-2 surface mount package.
  • Low reverse leakage current of 10µA at 1V.
  • RoHS3 compliant and halogen-free green device.

GDZ3V6LP3-7 Applications

  • Voltage regulation in portable electronics.
  • Overvoltage protection in battery-powered circuits.
  • Reference voltage in low-power sensor modules.
  • Used in automotive electronics (AEC-Q101 qualified).

GDZ3V6LP3-7 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of GDZ3V6LP3-7?

The nominal Zener voltage is 3.6V with a range of 3.41V to 3.79V at 5mA test current.

What is the power dissipation rating?

The maximum power dissipation is 250mW at 25°C ambient temperature.

What package does this Zener diode come in?

It comes in an X3-DFN0603-2 surface mount package (0201 / 0603 metric).

What is the operating temperature range?

The operating junction temperature range is -55°C to +150°C.

Is the GDZ3V6LP3-7 RoHS compliant?

Yes, it is RoHS3 compliant, lead-free, and halogen-free (green device).
