GDTX-S-88-50

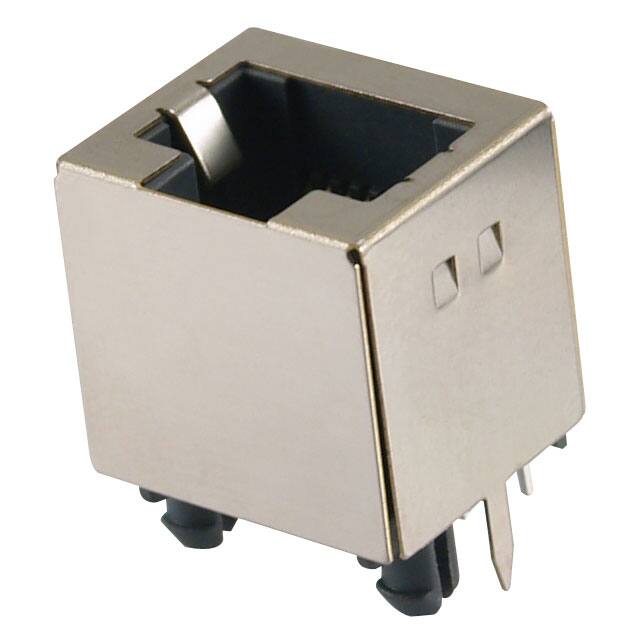

The GDTX-S-88-50 is a vertical CAT5 modular jack from Kycon Inc. featuring 8 positions and 8 contacts (8P8C) arranged in a single row. It is fully shielded with an EMI finger to reduce electromagnetic and radio frequency interference, making it suitable for high-speed data applications. The connector is rated for Category 5 performance, supporting Ethernet applications up to 100 MHz.\n\nElectrical specifications include a current rating of 1.5A, voltage rating of 125V DC, insulation resistance of 500 MOhm minimum, and dielectric withstanding voltage of 1000V RMS. Contact resistance is 20 mOhm maximum. The contacts are made of phosphor bronze with gold plating, while the housing is molded from gray PBT thermoplastic rated UL 94V-0. The shield is constructed from nickel-plated copper alloy.\n\nThis jack mounts via through-hole technology in a vertical orientation and is terminated by soldering. It includes board lock features for secure attachment to the PCB. The operating temperature range is -40°C to +85°C, and it offers a durability of 500 mating cycles minimum. The tab direction is user selectable, and the part does not contain an LED.
