| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,580 pcs
|
10580 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Features | |
| Housing Material | |
| Insulation Resistance | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

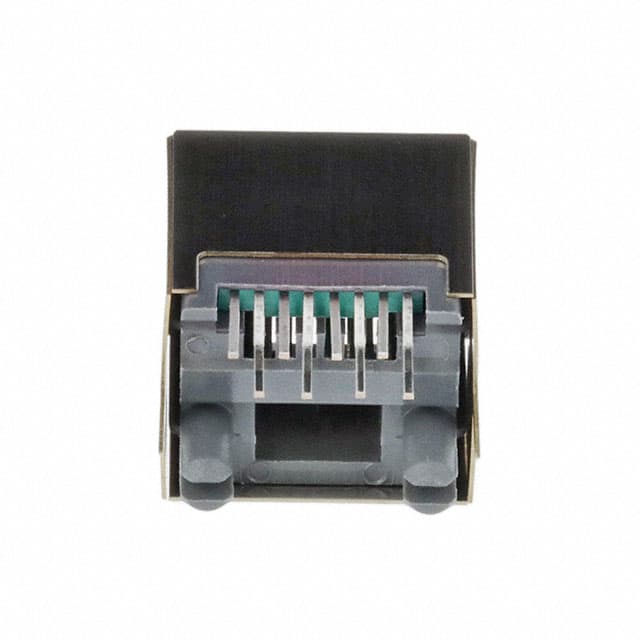

The GDTX-S-88 is a vertical Cat5 modular jack from Kycon Inc., part of the GDTX series. It features 8 positions and 8 contacts (8p8c) for RJ45 Ethernet applications. The jack is fully shielded with an EMI finger to reduce electromagnetic interference, and includes board lock features for secure mounting. It is rated for Category 5 performance.
Electrical specifications include a current rating of 1.5A, voltage rating of 125V DC, insulation resistance of 500 MΩ min, dielectric withstanding voltage of 1000V RMS, and contact resistance of 20 mΩ max. The operating temperature range is -40°C to +85°C, with a durability of 500 mating cycles minimum.
The housing is made of PBT thermoplastic with UL 94V-0 flammability rating, and contacts are phosphor bronze with gold finish. The shield is copper alloy with nickel plating. Termination is solder via through hole mounting. This connector is suitable for networking equipment, patch panels, and other data communication applications requiring reliable shielded connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.80 | $2.80 |
| 10+ | $2.55 | $2.55 |
| 25+ | $2.51 | $2.51 |
| 100+ | $2.13 | $2.13 |
| 300+ | $1.96 | $1.96 |
| 500+ | $1.90 | $1.90 |
| 1,000+ | $1.65 | $1.65 |
| 2,500+ | $1.55 | $1.55 |
| 5,000+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8p8c (RJ45, Ethernet).
1.5 A.
125 V DC.
Through Hole.
Yes, shielded with EMI finger.
-40°C to +85°C.
Phosphor bronze with gold finish.
