| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Body Material | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

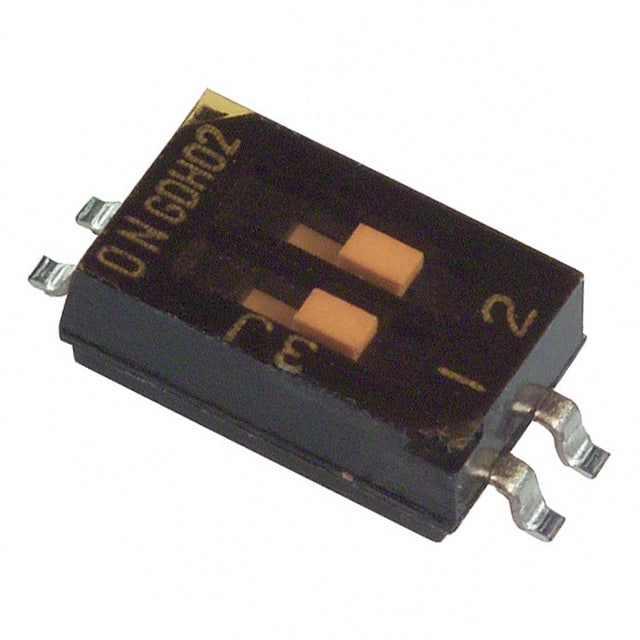

The TE Connectivity GDH02S is a Slide DIP Switch featuring Single Pole Single Throw (SPST) circuitry and two positions. This component is designed for surface mounting with gull wing termination style and has a pitch of 1.27mm (0.050").
With a current rating of 25mA and a voltage rating of 24VDC, the GDH02S has gold-plated copper alloy contacts. It operates within a temperature range of -30°C to 85°C and is washable. The actuator level is flush and recessed, with a slide (standard) type.
Key mechanical specifications include a height above board of 0.091" (2.30mm) and a length of 0.144" (3.67mm). The body material is Polyphenylene Sulfide (PPS). This switch is suitable for applications requiring reliable switching in a compact surface-mount form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The GDH02S DIP switch features Single Pole Single Throw (SPST) circuitry.
The GDH02S switch has 2 positions.
The current rating for the GDH02S DIP switch is 25mA.
The operating voltage for the GDH02S switch is 24VDC.
The GDH02S operates within a temperature range of -30°C to 85°C.
Yes, the GDH02S DIP switch is washable.
