| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating (Amps) | |
| Dimensions | |
| Fuse Type | |
| Melting I²t | |
| Mounting Type | |
| Response Time | |
| Tape & Reel | |
| Voltage Rating |

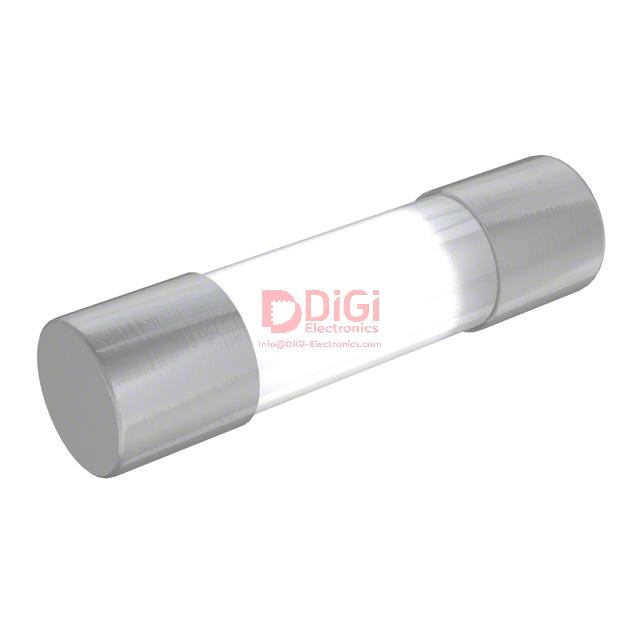

The Eaton GDB-160MA is a 5x20mm fast blow glass cartridge fuse designed for overcurrent protection in electronic circuits. It is rated for a current of 160mA and a voltage of 250V, with a breaking capacity of 35A at rated voltage. The fuse features a fast blow response, making it suitable for protecting sensitive components from rapid overcurrent events.
This fuse has a melting I²t of 0.008 A²s, which provides insight into its thermal response during fault conditions. It is a cartridge type fuse with a glass body and requires a holder for mounting. The package dimensions are 0.205" diameter by 0.787" length (5.20mm x 20.00mm), conforming to the standard 5x20mm fuse size.
The fuse carries VDE and UR agency approvals, indicating compliance with recognized safety standards. It is part of the BUSS small dimension fuse family, known for reliable circuit protection. The mounting type requires a holder, which is typical for 5x20mm cartridge fuses.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.19 | $8.19 |
| 10+ | $6.40 | $6.40 |
| 25+ | $6.06 | $6.06 |
| 500+ | $6.04 | $6.04 |
| 1,000+ | $5.92 | $5.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 160mA (0.16A).
The voltage rating is 250V.
The breaking capacity is 35A at 250V.
The response time is fast blow.
The package size is 5mm x 20mm (0.205" x 0.787").
The fuse has VDE and UR approvals.
The melting I²t is 0.008 A²s.
