| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

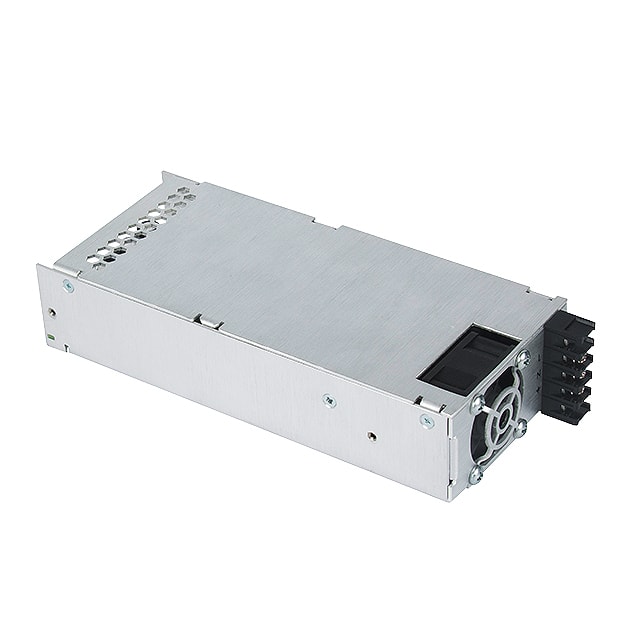

The XP Power GCU500PS18-EF is an open-frame AC/DC converter designed for industrial, IT, and medical applications. It provides a single 18VDC output with a maximum current of 27.8A and a power rating of 500W under forced air cooling conditions, and 250W convection-cooled.
This converter features a universal input voltage range of 80 to 264VAC, ensuring compatibility across various power grids. It operates efficiently with up to 92% efficiency at full load and maintains performance over a wide temperature range of -40°C to +70°C.
Key features include remote on/off control, a 5V standby output, and power fail signal. The unit is safety-approved by agencies including CB, CE, TUV, and UL, adhering to standards like IEC62368-1 and IEC60601-1. Its dimensions are 192.0mm x 83.8mm x 41.8mm, making it suitable for chassis mounting in 1U and other industrial systems.
Compliance includes EN55032 Level B conducted and radiated emissions. The GCU500PS18-EF is designed for reliability with a 3-year warranty.
The input voltage range is 80 to 264 VAC operating, with a typical rating of 115/230 VAC.
It provides a nominal 18 VDC output at 27.8 A.
The operating temperature range is -40°C to 70°C with derating.
It is an open frame converter designed for chassis mount installation.
It holds approvals including IEC/EN/UL 62368-1, IEC/EN 60601-1, and CSA standards, plus LVD and RoHS.
Yes, it includes a 5 VDC standby output at 0.2 A and a 12 VDC fan output at 0.5 A.
Typical efficiency is 92% at 230 VAC full load.
