| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

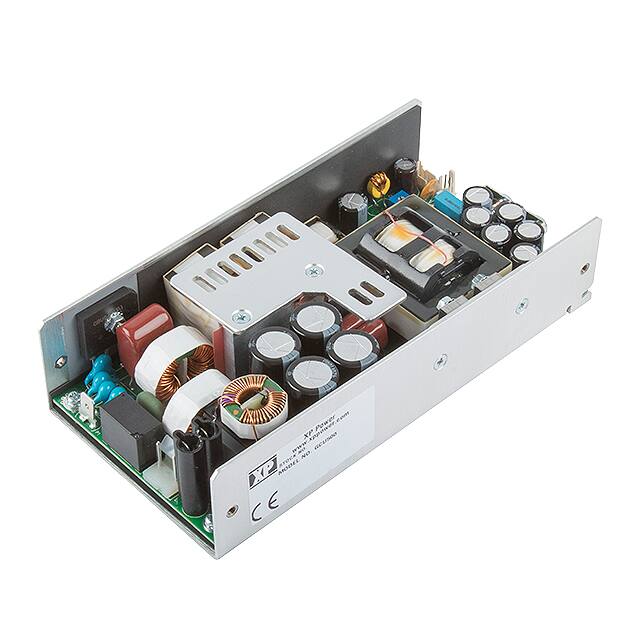

The XP Power GCU500PS12 is an enclosed AC/DC power supply designed for industrial, IT, and medical applications. It provides a 12VDC output with a 20.8A current rating, offering 250W of power under convection cooling and up to 500W with forced air.
This series features a universal 80 to 264VAC input range and achieves high efficiency up to 93%. The operating temperature range is -40°C to +70°C, with derating applied. Key features include remote on/off control, power fail signal, and a 5V standby output.
The unit is chassis mountable and has dimensions of 6.50" L x 3.30" W x 1.55" H (165.1mm x 83.8mm x 39.4mm). It meets EN55032 Level B conducted and radiated emissions standards and carries safety approvals including IEC60601-1, making it suitable for demanding environments.
Additional specifications include 4kV isolation voltage, internal input protection with an 8A fuse, and low earth leakage current. The GCU500 series is designed for reliability with a 3-year warranty.
80 to 264 VAC, with typical 115/230 VAC.
12 VDC at 20.8 A, with 250W convection or 500W forced air.
-40°C to 70°C.
IEC 60950-1, IEC/EN/UL 62368-1, IEC/EN 60601-1, CSA 22.2 No.6238-1, and others.
93% typical at 230VAC full load.
Enclosed, chassis mount.
Yes, 5 VDC at 0.2 A.
