| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

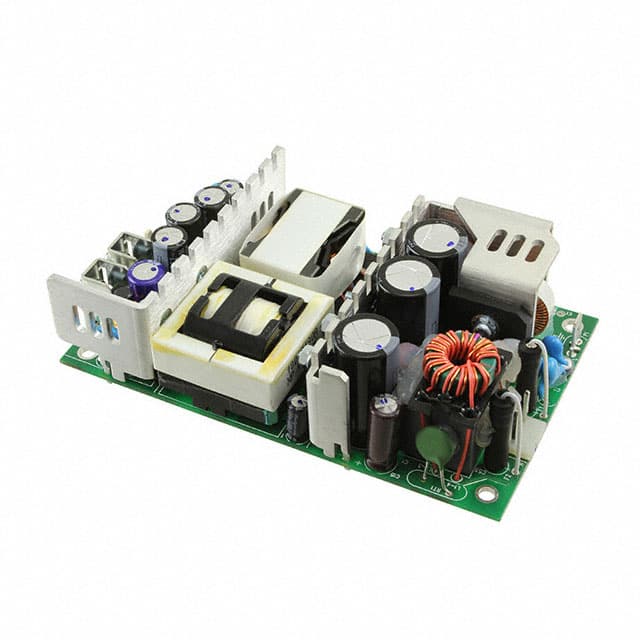

The XP Power GCS350PS24 is an AC DC converter designed for industrial, IT, and medical applications. It operates with a 24V output voltage and provides up to 200W of power, with a forced air rating of 350W.
This open-frame converter features a chassis mount type and a compact size of 127.0 x 76.2 x 36.3 mm. It boasts high efficiency, rated at 93%, and includes features such as 80 Plus® Silver certification, adjustable output, PFC, remote sense, and universal input. The isolation voltage is rated at 4 kV.
Designed to meet environmental legislation, the GCS series minimizes no-load power consumption and maximizes efficiency. It achieves EN55011/32 Level B emissions compliance and is approved by CB and CE. The operating temperature range is from -40°C to 70°C, making it suitable for demanding environments. It adheres to standard IEC 62368-1.
24 VDC.
Open frame package with chassis mount. Dimensions: 127.0 x 76.2 x 36.3 mm.
-40°C to 70°C.
200W (350W forced air).
93%.
ITE (commercial) and medical applications.
