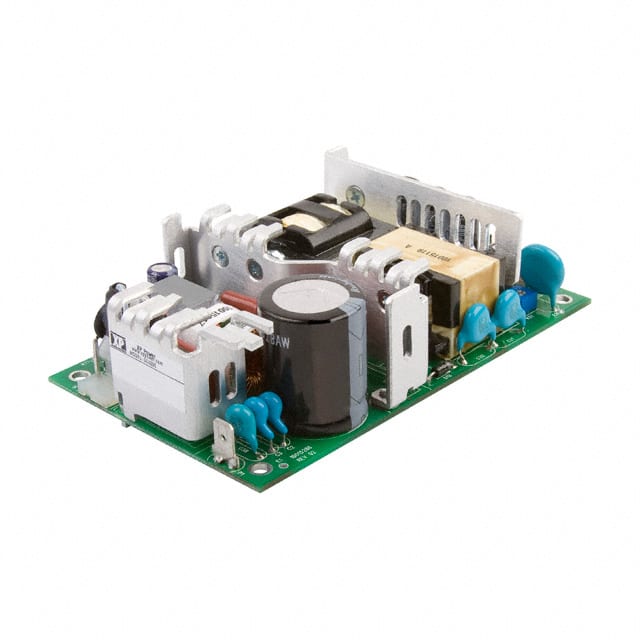

The XP Power GCS250PS48 is a single-output AC/DC open frame power supply designed for ITE (Commercial) and Medical applications. It features a universal input voltage range of 85 to 264 VAC and delivers a nominal output of 48 VDC at 3.7 A, providing 180W of power under convection cooling conditions. For higher power demands, it can deliver up to 250W with forced air cooling.
This power supply operates within a wide temperature range of -40°C to 70°C with derating. Its compact dimensions of 127.0mm x 76.2mm x 36.3mm make it suitable for chassis mounting. Key features include adjustable output, standby output, and universal input, along with compliance to EN55011/32 Level B emissions standards.
The GCS250PS48 is built to meet industry standards, including IEC62368-1. It is approved by CB and CE, ensuring suitability for various industrial and medical equipment designs.
85 to 264 VAC.
Chassis mount, open frame.
-40°C to 70°C with derating.
180W.
250W.
93%.
UL 62368-1 for safety and EN55011/32 Level B for emissions.
