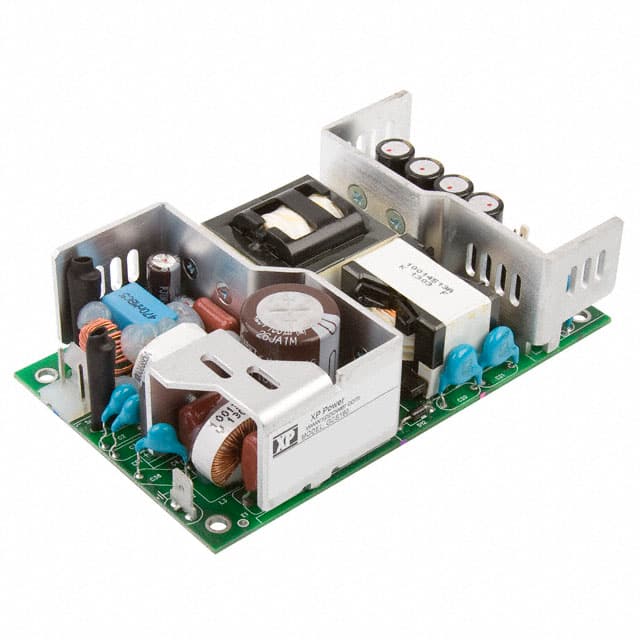

The XP Power GCS180PS28 is an open-frame AC/DC power supply designed for industrial, IT, and medical applications. It delivers a single 28V DC output with a maximum power of 150W under convection cooling, and up to 180W with forced air.
This converter boasts a high efficiency of 93% and features like adjustable output, standby output, and universal input, making it versatile for various designs. It operates within a temperature range of -40°C to 70°C with derating and provides 4 kV isolation.
The GCS180PS28 has a compact chassis mount design with dimensions of 127.0mm x 76.2mm x 36.3mm. It meets safety standards including CB, CE, and is compliant with EN62368-1.
Approved for Class I and Class II applications, this power supply is suitable for a wide range of 1U and other industrial, IT, and medical equipment.
The output voltage is 28 VDC.
The maximum output current is 5.4 A.
The power rating is 150W under convection cooling and 180W with forced air.
The efficiency is 93%.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 127.0mm x 76.2mm x 36.3mm.
It complies with CB, CE, and EN62368-1 standards.
