| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

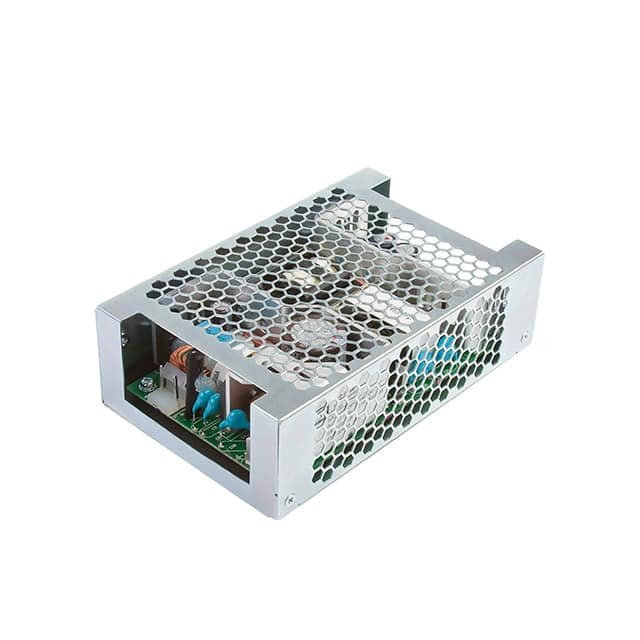

The XP Power GCS180PS24-C is a single-output AC-DC power supply from the GCS180 series, designed for industrial, IT, and medical applications. It is packaged in an industry-standard 3.0" x 5.0" x 1.42" form factor and is suitable for 1U applications.
This converter offers a nominal output voltage of 24V DC with a current rating of 6.3A, delivering up to 151W of power (180W with forced air). It boasts high efficiency of 93% and features like Power Factor Correction (PFC), a standby output, and universal input capabilities. The operating temperature range is -40°C to 70°C with derating.
Approved by CB, CE, TUV, and UL, the GCS180PS24-C meets standard IEC 62368-1. It is designed to minimize no-load power consumption and maximize efficiency, facilitating compliance with the latest environmental legislation. The unit is approved for Class I and Class II applications and achieves EN55011/32 Level B emissions compliance.
Mounting is via chassis, making it suitable for integration into various equipment. The GCS180PS24-C is designed for ITE (Commercial) and Medical applications, offering reliable power conversion.
24 VDC.
6.3 A.
93% typical.
-40°C to 70°C with derating.
4000 V.
CB, CE, TUV, UL.
5.00 x 3.00 x 1.42 inches (127.0 x 76.2 x 36.3 mm).
