| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,000 pcs
|
32000 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
2,977 pcs
|
2977 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Capacitance Change (Maximum @ After 1000 cycles, -55 °C to +125 °C) | |
| Capacitance Change (Maximum @ After 1000 h at 150 °C) | |
| Capacitance Change (Maximum @ After 24 h 25 °C -65 °C, 80%-98% RH, 10 cycles) | |
| Dissipation Factor (Max) | |
| Halogen Free | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package Style | |
| Ratings | |
| SVHC Present | |
| Tape & Reel | |
| Tape & Reel Quantity | |
| Tape & Reel Quantity (Alternate) | |
| Temperature Coefficient | |
| Termination Style | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

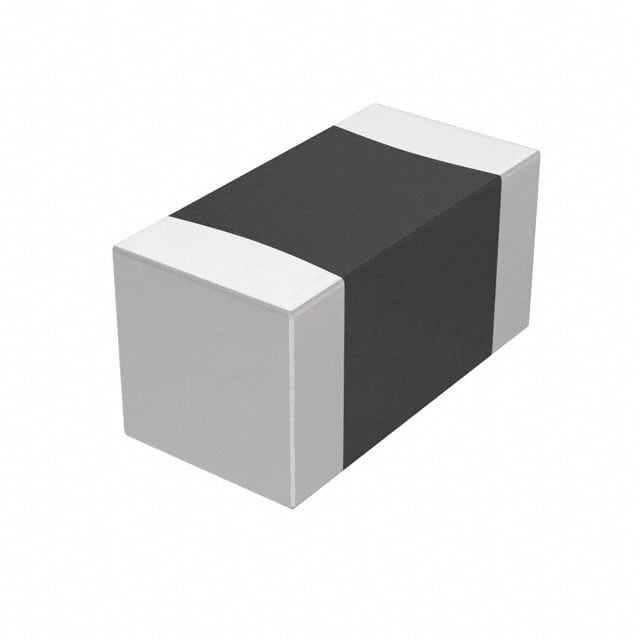

The GCM188R70J225KE22D is an automotive grade multilayer ceramic capacitor (MLCC) from Murata. It offers a capacitance of 2.2 µF with a rated voltage of 6.3V DC. The capacitor uses X7R dielectric, which provides a capacitance change of ±15% over the operating temperature range of -55°C to +125°C. The capacitance tolerance is ±10%.
This MLCC is housed in a standard 0603 (1608 metric) surface mount package with dimensions of 1.6 mm x 0.8 mm and a maximum thickness of 0.9 mm. It is designed for automated assembly and is supplied on tape and reel with options of 4000 pcs per 180 mm reel or 10000 pcs per 330 mm reel.
The component is AEC-Q200 qualified, making it suitable for automotive electronic systems such as engine control units, infotainment, ADAS, and other applications requiring high reliability. The datasheet specifies reliability tests including high temperature exposure, temperature cycling, and moisture resistance, each with defined capacitance change limits. The maximum dissipation factor is 0.2.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.21 | $0.21 |
| 10+ | $0.08 | $0.08 |
| 100+ | $0.07 | $0.07 |
| 500+ | $0.06 | $0.06 |
| 1,000+ | $0.05 | $0.05 |
| 4,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.2 µF.
6.3V DC.
X7R, with capacitance change of ±15% over -55°C to +125°C.
±10%.
0603 (1608 metric).
-55°C to 125°C.
Yes, it is AEC-Q200 automotive grade.
