| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
154 pcs
|
154 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

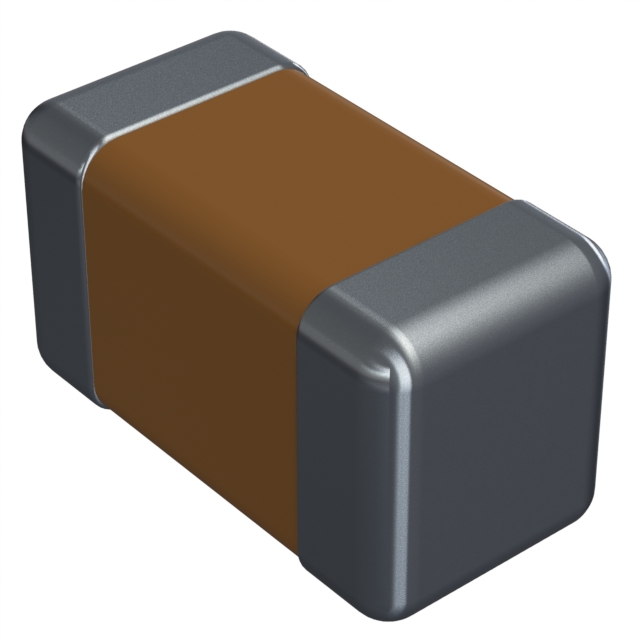

The Murata GCM1555C1H271FA16D is a multilayer ceramic capacitor (MLCC) from the GCM series, designed specifically for automotive electronic equipment. It offers a nominal capacitance of 270 pF with a tight ±1% tolerance, and is rated for 50V DC operation. The capacitor utilizes a C0G (NP0) dielectric, which provides a stable temperature coefficient of 0±30 ppm/°C over the full operating temperature range of -55°C to 125°C.
This component is AEC-Q200 qualified, ensuring reliability in harsh automotive environments. It features high Q factor (minimum 1000 for capacitance ≥30pF) and excellent insulation resistance (more than 10,000 MΩ at 25°C). The capacitor is packaged in a compact 0402 (1005 Metric) case size, measuring 1.00mm x 0.50mm with a maximum thickness of 0.55mm, making it suitable for space-constrained surface-mount assemblies.
Typical applications include automotive engine control units, sensors, and other electronic modules requiring stable capacitance over temperature and voltage. The part is supplied on a 180mm reel with 10,000 pieces per reel (packaging code D).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.03 | $0.03 |
| 100+ | $0.03 | $0.03 |
| 500+ | $0.02 | $0.02 |
| 1,000+ | $0.02 | $0.02 |
| 2,500+ | $0.01 | $0.01 |
| 5,000+ | $0.01 | $0.01 |
| 10,000+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
270 pF.
50V DC.
C0G (NP0) with 0±30 ppm/°C.
±1%.
0402 (1005 Metric).
-55°C to 125°C.
Q ≥ 1000 (for ≥30pF).
