Mfr Part #:

GCC10MMWD

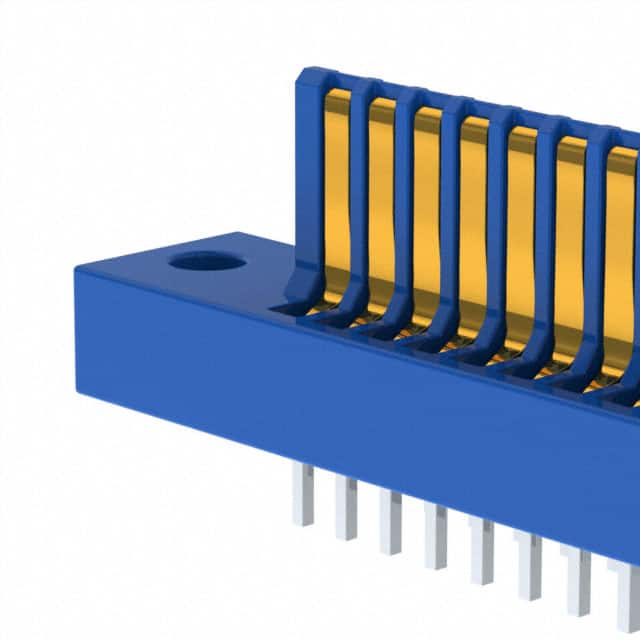

Name: GCC10MMWD
Brand: Sullins Connector Solutions
SKU: GCC10MMWD

Description:

CONN CARDEDGE MALE 20POS 0.100

Stock on Request

GCC10MMWD Description

Short technical summary and product information.

CONN CARDEDGE MALE 20POS 0.100

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

ECC10MMSD

Sullins Connector Solutions

CONN CARDEDGE MALE 20POS 0.100

ECC10MMWD

Sullins Connector Solutions

CONN CARDEDGE MALE 20POS 0.100

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Fits Female Edgecards
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Phosphor Bronze
Flange Feature	Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Gender	Male
Mounting Type	Through Hole
Number of Positions	10
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.100" (2.54mm)
Read Out	Dual
Termination	Solder
