Mfr Part #:

GC5330IZEV

The Texas Instruments GC5330IZEV is a wideband transmit-receive digital signal processor. It features a 62-MHz TX signal bandwidth and offers typical ACLR improvement of 20 dB or more with DPD correction.

✓ Total Stock: 230 pcs

$ Price Range: $27.44

GC5330IZEV Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	180 pcs On Request	180 pcs	On Request	1	On Request	On Request	11+	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	50 pcs On Request	50 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

GC5330IZEV Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	RF Misc ICs and Modules
Manufacturer Name	Texas Instruments
Function	Digital Signal Processor
Mounting Type	Surface Mount
Power Consumption	3.5 W
RF Type	CDMA, GSM, TD-SCDMA, W-CDMA, WiMAX

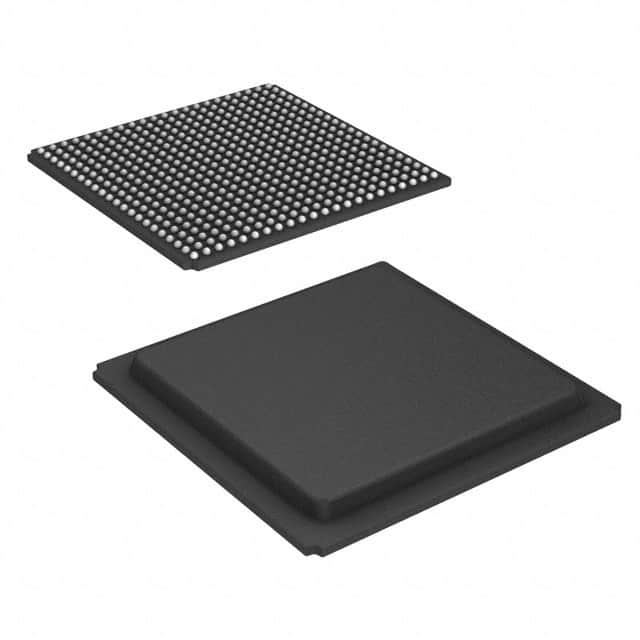

Supplier Device Package	484-BGA

View Similar Products (0)

GC5330IZEV Description

Short technical summary and product information.

The GC5330IZEV from Texas Instruments is a wideband transmit and receive signal processor designed for multi-standard base stations and wireless infrastructure. This device integrates digital downconverter/upconverter (DDUC), transmit, receive, and capture buffer blocks.

The transmit path includes crest factor reduction (CFR), digital predistortion (DPD) with associated feedback path, complex equalization, and bulk upconversion. It supports a 62-MHz TX signal bandwidth with fifth-order DPD correction, achieving typical ACLR improvement of 20 dB or more. The receive path features wideband and narrowband automatic gain control (AGC), bulk downconversion, complex equalization, and I/Q imbalance correction.

This processor operates with a 1.1-V core voltage and 3.3-V/1.8-V I/O voltages. It is housed in a 484-BGA package and is suitable for surface mount applications. The GC5330IZEV is designed for applications such as 3GPP (LTE, W-CDMA, TDS-CDMA), MC-GSM, WiMAX, WiBro, and multi-carrier power amplifiers.

GC5330IZEV Quick Information

Product Type: Digital Signal Processor

Canonical Name: GC5330IZEV Wideband Transmit-Receive Digital Signal Processor

Subcategory: RF Misc ICs and Modules

GC5330IZEV Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

GC5330IZEV Estimated Pricing

Qty	Low	High
1+	$27.44	$27.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

GC5330IZEV Features

Wideband transmit-receive digital signal processor.
62-MHz TX signal bandwidth with DPD correction.
Supports multiple wireless standards like LTE and WiMAX.
Integrated CFR, DPD, DDUC, and AGC functions.
1.1-V core voltage with 3.3-V/1.8-V I/O.

GC5330IZEV Applications

Used in multi-standard base stations.
Suitable for wireless infrastructure repeaters.
Supports multi-carrier power amplifiers.
Ideal for WiMAX and WiBro applications.
Designed for 3GPP (LTE, W-CDMA) systems.

GC5330IZEV FAQs

5 frequently asked questions generated from this part’s specifications.

What is the TX signal bandwidth of the GC5330IZEV?

The GC5330IZEV has a TX signal bandwidth of 62 MHz.

What is the typical ACLR improvement provided by the DPD correction?

The DPD correction provides a typical ACLR improvement of 20 dB.

What are the core and I/O voltage requirements for the GC5330IZEV?

The GC5330IZEV requires a 1.1-V core voltage and 3.3-V/1.8-V I/O voltages.

What package type is the GC5330IZEV available in?

The GC5330IZEV is available in a 484-BGA package.

What is the mounting type for the GC5330IZEV?

The GC5330IZEV is a surface mount device.
