| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,391 pcs
|
1391 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Voltage | |
| FIR Filter Block Cells | |
| I/O Voltage | |
| Input Rate (Maximum @ Four Channels) | |
| Input Rate (Maximum @ Two Channels in Double Rate Mode) | |
| Mounting Type | |
| Number of Mixers | |
| Output Rate (Maximum @ Four Channels) | |
| Output Rate (Maximum @ Two Channel Double Rate Real Output Mode) | |
| Output Rate (Maximum @ Two Channels) | |
| Parallel Input Bits | |
| Parallel Output Bits | |
| Power Dissipation | |
| RF Type | |
| SFDR | |
| Secondary Attributes | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Taps Per Channel |

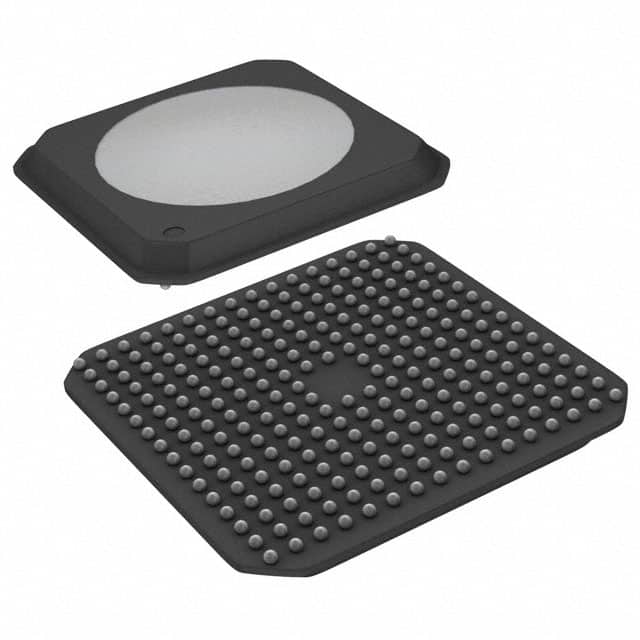

The Texas Instruments GC5016-PB is an RF Mixer IC with four independently configurable wideband channels, capable of both down-conversion and up-conversion modes. It supports input rates up to 160 MSPS for four channels or 320 MSPS for two channels in double rate mode. The device offers a high SFDR of 115 dB and includes an FIR filter block with up to 256 taps per channel.
Designed for applications such as cellular base transceiver stations (WCDMA, CDMA2000), radar, general filtering, and test and measurement, the GC5016-PB operates with 3.3-V I/O and a 1.8-V core voltage. It features flexible I/O options with 64 parallel input and output bits. The component is housed in a 252-ball, 17-mm PBGA package with a 1-mm pitch and is suitable for surface mount applications.
Power dissipation is less than 1 W for four channels. The GC5016-PB also supports JTAG boundary scan functionality.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.77 | $5.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input rate is up to 160 MSPS for four channels, or 320 MSPS for two channels in double rate mode.
The GC5016-PB has a Spurious-Free Dynamic Range (SFDR) of 115 dB.
The GC5016-PB is designed for Cellular, CDMA2000, and W-CDMA applications.
The GC5016-PB is available in a 252-BGA package.
The GC5016-PB is a surface mount device.
The GC5016-PB has 3.3-V I/O and a 1.8-V core voltage.
Power dissipation is less than 1 W for four channels.
