| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,470 pcs
|
1470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Mounting Type | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel |

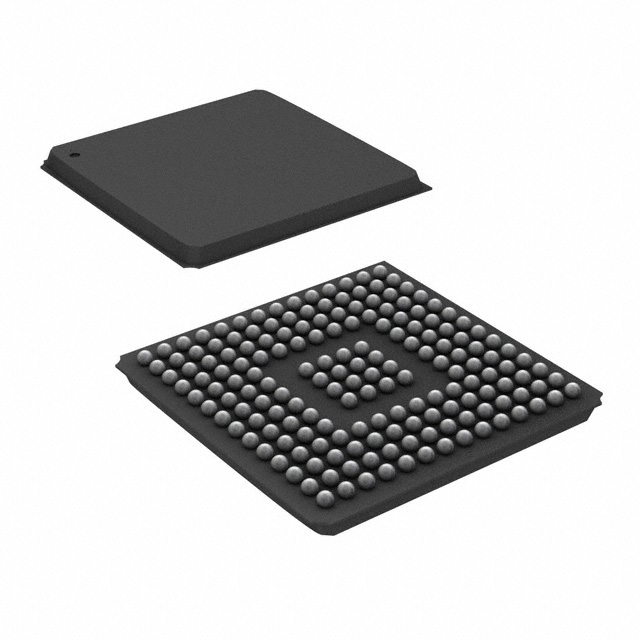

The GC4016-PB from Texas Instruments is a multi-standard quad Digital Downconverter (DDC) chip designed for RF applications. This integrated circuit functions as a downconverter, supporting AMPS and CDMA RF types. It is housed in a 160-BGA (15x15) package, suitable for surface mount applications.
The GC4016 chip is detailed in a datasheet revision 1.0 from August 27, 2001, by Graychip, Inc. The datasheet outlines its features, block diagram, and functional description, including control interface details. Electrical and timing specifications are also provided, with references to differential inputs. The part is specified with a 160-BGA package and surface mount type.
This component is identified by part numbers 2156-GC4016-PB-TI-ND and 296-12264-ND. Its primary function is downconversion, making it suitable for various RF signal processing tasks. The datasheet mentions support for different modes and configurations, indicating its versatility in communication systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.44 | $27.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The GC4016-PB is supplied in a 160-BGA (15x15) package.
The GC4016-PB is a surface mount device.
The GC4016-PB functions as a downconverter.
The GC4016-PB supports AMPS and CDMA RF types.
The GC4016-PB is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the GC4016-PB is 1 Unlimited.
The GC4016-PB is REACH Unaffected.
