| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,054 pcs
|
1054 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

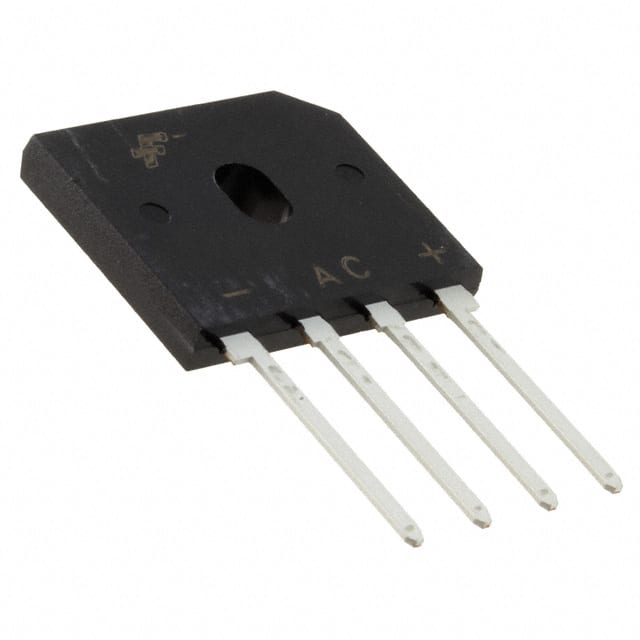

The GBU4M is a single phase bridge rectifier manufactured by On Semiconductor. It is designed for converting AC to DC in power supply applications. The device features a maximum repetitive reverse voltage of 1kV and a peak repetitive forward current of 5A. It is housed in a through-hole GBU package (4-SIP) suitable for PCB mounting. The operating junction temperature range is -55°C to 150°C. The rectifier uses standard silicon technology. Compliance information indicates RoHS3 compliance, REACH unaffected, and MSL level 1 (unlimited), though these are unverified. The part is commonly used in general purpose power rectification circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.28 | $2.28 |
| 10+ | $1.29 | $1.29 |
| 100+ | $0.99 | $0.99 |
| 500+ | $0.79 | $0.79 |
| 800+ | $0.79 | $0.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1kV.
5A (peak repetitive).
Through-hole GBU (4-SIP) package.
-55°C to 150°C (junction).
Through hole.
According to existing data, it is marked as RoHS3 compliant, but this is unverified.
Single phase bridge rectifier.
