| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
92 pcs
|
92 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Country of Origin | |
| Dimensions | |
| Forward Current | |
| Halogen Free | |
| SVHC Present |

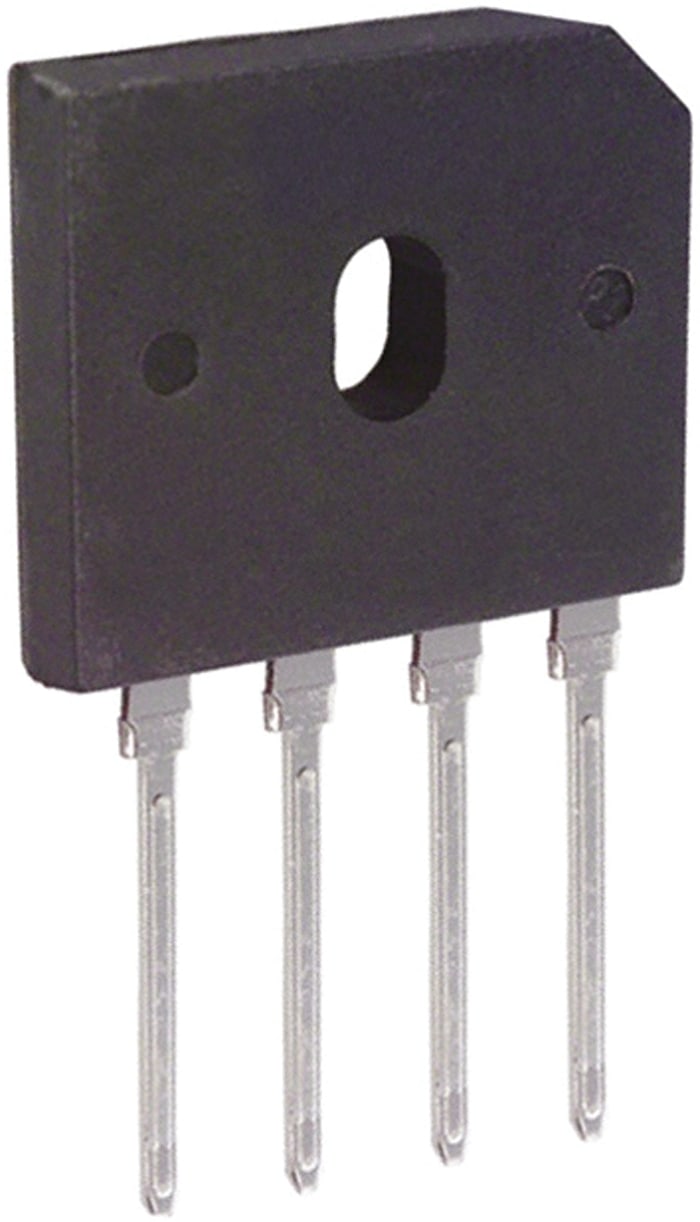

The GBU401 is a bridge rectifier manufactured by TSC, designed for efficient AC to DC conversion. It features a peak reverse repetitive voltage rating of 100V and a continuous forward current of 4A, with a high non-repetitive forward surge current capability of 150A.
This component is housed in a GBU package and is suitable for through-hole mounting, making it ideal for printed circuit board applications. It operates within a temperature range of -55°C to 150°C. The bridge rectifier configuration provides a single output polarity for either input polarity, simplifying power supply designs.
Key electrical characteristics include a peak forward voltage of 1V and a low peak reverse current of 50μA. The device also boasts a high case dielectric strength of 1500V RMS. Its compact dimensions (18.8mm height, 22.3mm length) facilitate integration into various electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak reverse repetitive voltage (Vrrm) is 100V.
The forward current (If) is 4A.
The peak forward voltage (Vf) is 1V.
The peak non-repetitive forward surge current (Ifsm) is 150A.
The peak reverse current (Ir) is 50μA.
The operating temperature range is from -55°C to 150°C.
The package has a length of 22.3mm and a height of 18.8mm.
