| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Forward Voltage | |
| Industrial Grade | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

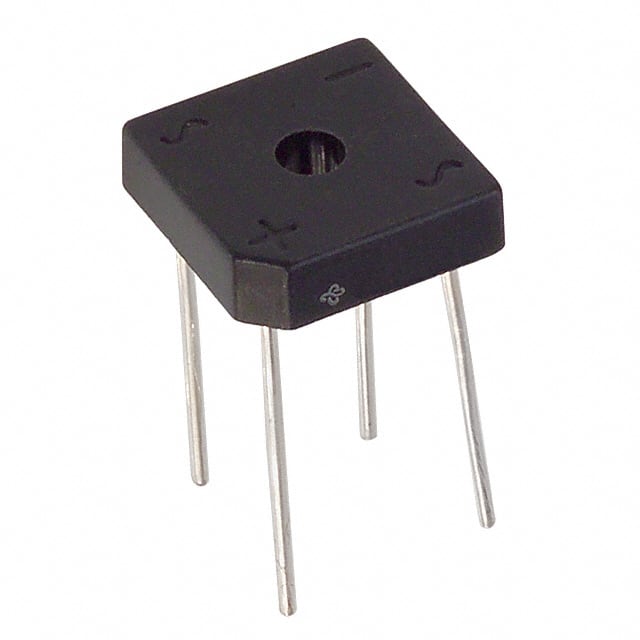

The GBPC602-E4/51 is a single-phase bridge rectifier manufactured by Vishay Dale. It is designed for general purpose AC to DC full-wave rectification in power supplies, home appliances, office equipment, and industrial automation applications.
This rectifier features a maximum repetitive peak reverse voltage (VRRM) of 200V and an average forward rectified output current of 6A at TC=50°C (3A at TA=40°C). It can handle a peak forward surge current (IFSM) of 175A and has a maximum forward voltage drop of 1.0V at 3A. The reverse leakage current is typically less than 0.5µA, with a maximum of 5µA.
The device is housed in a GBPC6 package with silver-plated leads, designed for through-hole mounting. It features a high case dielectric strength of 1500Vrms and is rated for a solder dip temperature of 275°C for 10 seconds per JESD 22-B106. The operating junction temperature range is -55°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.97 | $4.97 |
| 10+ | $2.57 | $2.57 |
| 100+ | $1.85 | $1.85 |
| 500+ | $1.74 | $1.74 |
| 5,000+ | $1.70 | $1.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200V.
6A at TC=50°C, 3A at TA=40°C.
1.0V maximum at 3A.
GBPC6 (4-Square, through-hole).
175A.
Yes, RoHS3 compliant.
-55°C to 150°C.
