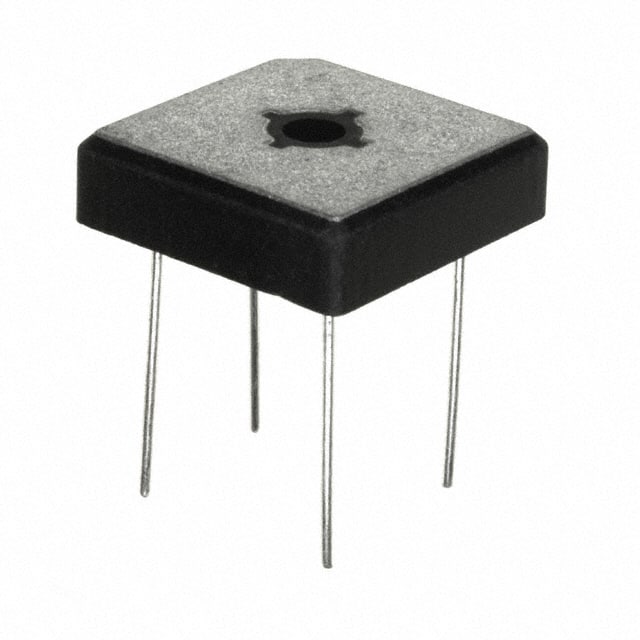

GBPC5010W-G Single phase bridge rectifier rated for 1000V peak reverse voltage and 50A average rectified current. Housed in a through-hole GBPC-W package with electrically isolated base.
Mfr Part #:

GBPC5010W-G

Available from 1 distributors
Mfr Name: Comchip Technology
Comchip Technology
Single phase bridge rectifier rated for 1000V peak reverse voltage and 50A average rectified current. Housed in a through-hole GBPC-W package with electrically isolated base.
✓ Total Stock: 17 pcs
$ Price Range: $2.64 - $6.96

GBPC5010W-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
17 pcs
On Request
17 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GBPC5010W-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Mounting Type
Operating Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
Weight
View Similar Products (0)

GBPC5010W-G Description

Short technical summary and product information.

The GBPC5010W-G is a single phase bridge rectifier from Comchip Technology, designed for high current and voltage applications. It features a maximum peak reverse voltage of 1000V and an average rectified current of 50A. The device can handle surge currents up to 450A, making it suitable for demanding power supply designs. The forward voltage drop is typically 1.1V at 25A per element, and reverse leakage current is limited to 10µA at rated DC blocking voltage. The operating junction temperature range is -55°C to 150°C. The rectifier is housed in a through-hole GBPC-W package with an electrically isolated base rated for 2000V isolation. It is UL recognized (File #E349301) and RoHS compliant (unverified). Typical applications include AC to DC conversion in power supplies, industrial equipment, and motor drives.

GBPC5010W-G Quick Information

Product Type: Bridge Rectifier
Series: GBPC_W-G
Canonical Name: Comchip Technology GBPC5010W-G Bridge Rectifier
Subcategory: Single Phase Bridge Rectifier

GBPC5010W-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GBPC5010W-G Estimated Pricing

Qty Low High
1+ $6.96 $6.96
10+ $4.67 $4.67
100+ $3.52 $3.52
500+ $2.95 $2.95
1,000+ $2.66 $2.66
2,500+ $2.64 $2.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

GBPC5010W-G Features

  • Rated for 1000V peak reverse voltage.
  • Handles 50A average rectified current.
  • Surge current capability of 450A.
  • Through-hole GBPC-W package.
  • Electrically isolated base for 2000V isolation.

GBPC5010W-G Applications

  • Used in AC to DC power supplies.
  • Ideal for industrial motor drives.
  • Suitable for battery charging circuits.
  • Applied in welding equipment.

GBPC5010W-G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak reverse voltage rating?

1000V maximum.

What is the average rectified current rating?

50A maximum.

What is the forward voltage drop?

1.1V maximum at 25A per element.

What package does the GBPC5010W-G come in?

4-Square, GBPC-W through-hole package.

What is the peak forward surge current rating?

450A maximum at 8.3ms single half sine-wave.

What is the operating temperature range?

-55°C to 150°C (junction).

Does the device have isolation?

Yes, electrically isolated base with 2000V isolation.
