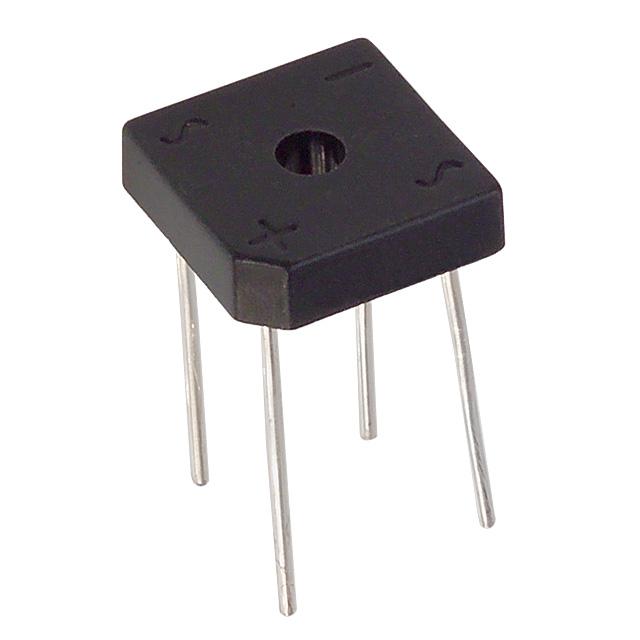

The GBPC3510W is a single phase bridge rectifier from On Semiconductor, part of the GBPC 12, 15, 25, 35 series. It is rated for a maximum repetitive peak reverse voltage of 1 kV and an average rectified forward current of 35 A. The device features a standard technology and is designed for through-hole mounting in a 4-Square GBPC-W package.
Electrical characteristics include a maximum forward voltage of 1.1 V at 17.5 A per bridge element, a maximum reverse leakage current of 5 µA at rated voltage and 25 °C, and a non-repetitive peak forward surge current rating of 400 A (8.3 ms single half-sine-wave). The I²t rating is 660 A²s. The device operates over a junction temperature range of -55°C to 150°C.
The bridge rectifier incorporates an integrally molded heat sink for low thermal resistance (1.5 °C/W junction-to-case with heatsink) and provides isolation voltage of 2500 V from case to lead. Terminals have a silver finish, solderable per MIL-STD-202, Method 208. Maximum mounting torque is 20 in-lbs. The device is Pb-free and UL certified (UL #E258596).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.33 | $6.33 |
| 10+ | $3.44 | $3.44 |
| 100+ | $3.14 | $3.14 |
| 500+ | $2.95 | $2.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak reverse voltage is 1 kV.
The average rectified forward current is 35 A.
The maximum forward voltage is 1.1 V at 17.5 A per bridge element.
The device is housed in a 4-Square GBPC-W through-hole package.
The operating junction temperature range is -55°C to 150°C.
The datasheet states the device is Pb-free, but RoHS compliance is unverified.
The non-repetitive peak forward surge current is 400 A for an 8.3 ms single half-sine-wave.
