| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,620 pcs
|
1620 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Forward Voltage | |
| Industrial Grade | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Reverse Current | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Voltage |

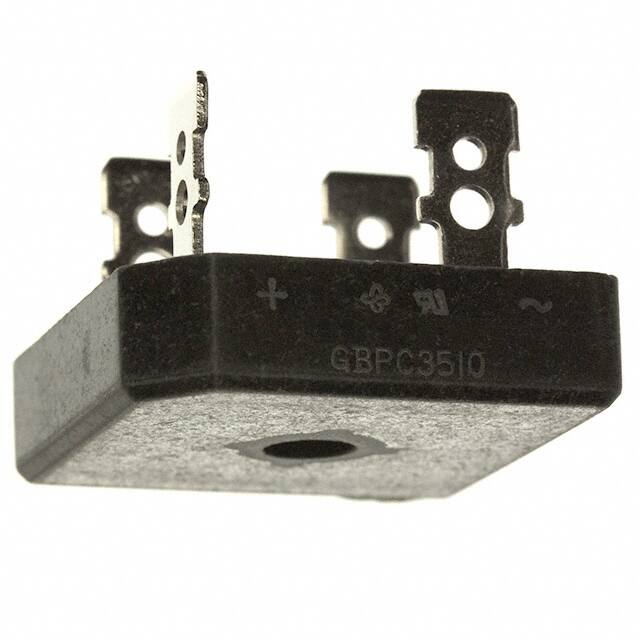

The GBPC3510-E4/51 is a glass passivated single-phase bridge rectifier from Vishay General Semiconductor, designed for AC/DC full wave rectification in power supply, home appliances, office equipment, and industrial automation applications. It features a maximum repetitive peak reverse voltage of 1000V, average forward rectified output current of 35A (with heatsink), and a peak forward surge current capability of 400A (non-repetitive, 8.3 ms sine wave).
The device is built with a quad circuit configuration and operates over a junction temperature range of -55°C to 150°C. Typical forward voltage is 1.1V at 35A, and reverse current is 5 µA at 25°C. The I²t rating is 660 A²s at 8.3 ms.
Packaged in the industry-standard GBPC (4-Square) case, the GBPC3510-E4/51 offers universal 3-way terminals (snap-on, wire wrap-around, or PCB mounting) with nickel-plated faston lugs or silver-plated wire leads. The molding compound meets UL 94 V-0 flammability rating, and the E4 suffix indicates RoHS-compliant commercial grade.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.86 | $7.86 |
| 10+ | $3.98 | $3.98 |
| 100+ | $3.51 | $3.51 |
| 500+ | $3.23 | $3.23 |
| 2,500+ | $3.15 | $3.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak reverse voltage is 1000 V.
The average forward rectified output current is 35 A with a heatsink.
The typical forward voltage is 1.1 V at 35 A.
It is available in a 4-Square, GBPC package.
The peak forward surge current is 400 A (non-repetitive, 8.3 ms sine wave).
The operating junction temperature range is -55°C to 150°C.
