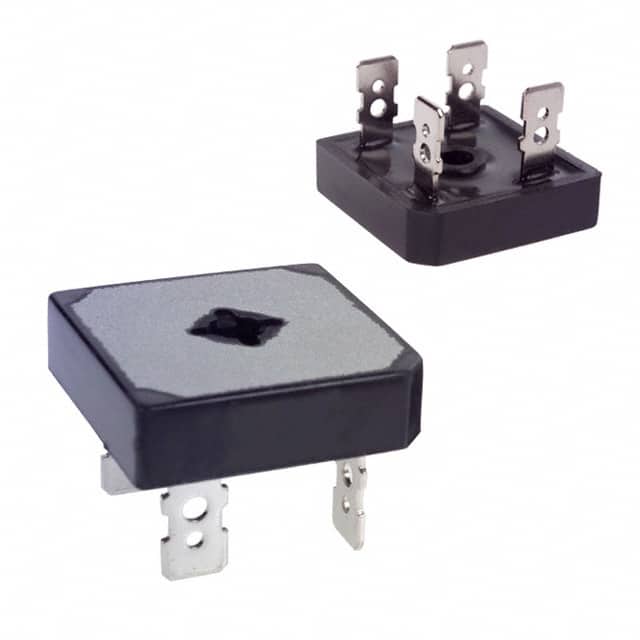

GBPC2510 GBPC2510 is a single phase bridge rectifier rated for 25A average forward current and 1000V repetitive reverse voltage. It comes in a 4-Square GBPC package with QC terminal mounting.
Mfr Part #:

GBPC2510

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
GBPC2510 is a single phase bridge rectifier rated for 25A average forward current and 1000V repetitive reverse voltage. It comes in a 4-Square GBPC package with QC terminal mounting.
✓ Total Stock: 100 pcs

GBPC2510 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request 2026-04-28 22:15:22
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GBPC2510 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Lead Style
Mounting Type
Operating Temperature
Power Dissipation
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Termination Style
Voltage
View Similar Products (0)

GBPC2510 Description

Short technical summary and product information.

The GBPC2510 is a single phase bridge rectifier designed for converting AC to DC in power supply applications. It features a standard technology with glass passivated junctions for reliability.



Key electrical specifications include a maximum repetitive reverse voltage of 1000V, an average rectified forward current of 25A, and a forward voltage drop of 1.1V max at 12.5A. The device can handle a non-repetitive peak forward surge current of 300A (8.3 ms single half-sine-wave) and has an I²t rating of 375 A²s.



The GBPC2510 is housed in a 4-Square GBPC package with QC (quick connect) terminal style for easy mounting. It has an operating junction temperature range of -55°C to 150°C and a thermal resistance (junction to case) of 1.5 °C/W with a heatsink. The package is UL certified (E258596) and is Pb-free.

GBPC2510 Quick Information

Product Type: Bridge Rectifier
Series: GBPC 12, 15, 25, 35 Series
Canonical Name: GBPC2510 Bridge Rectifier, Single Phase, 25A, 1000V, GBPC Package
Subcategory: Single Phase Bridge Rectifier

GBPC2510 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

GBPC2510 Features

  • 25A average rectified forward current rating.
  • 1000V maximum repetitive reverse voltage.
  • 300A non-repetitive peak surge current.
  • GBPC package with QC terminal mounting.
  • Pb-free and UL certified design.

GBPC2510 Applications

  • Used in AC to DC power supplies.
  • Ideal for industrial rectification circuits.
  • Suitable for battery charger applications.
  • Applied in motor control power stages.

GBPC2510 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive reverse voltage of the GBPC2510?

The maximum repetitive reverse voltage is 1000V.

What is the average rectified forward current rating?

The average rectified forward current is 25A.

What is the forward voltage drop of the GBPC2510?

The forward voltage drop is 1.1V maximum at 12.5A.

What package does the GBPC2510 come in?

It comes in a 4-Square GBPC package with QC terminal mounting.

What is the operating temperature range?

The operating junction temperature range is -55°C to 150°C.

What is the surge current rating?

The non-repetitive peak forward surge current is 300A for an 8.3 ms single half-sine-wave.

Is the GBPC2510 RoHS compliant?

The datasheet indicates the device is Pb-free, but RoHS compliance is unverified.
