| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

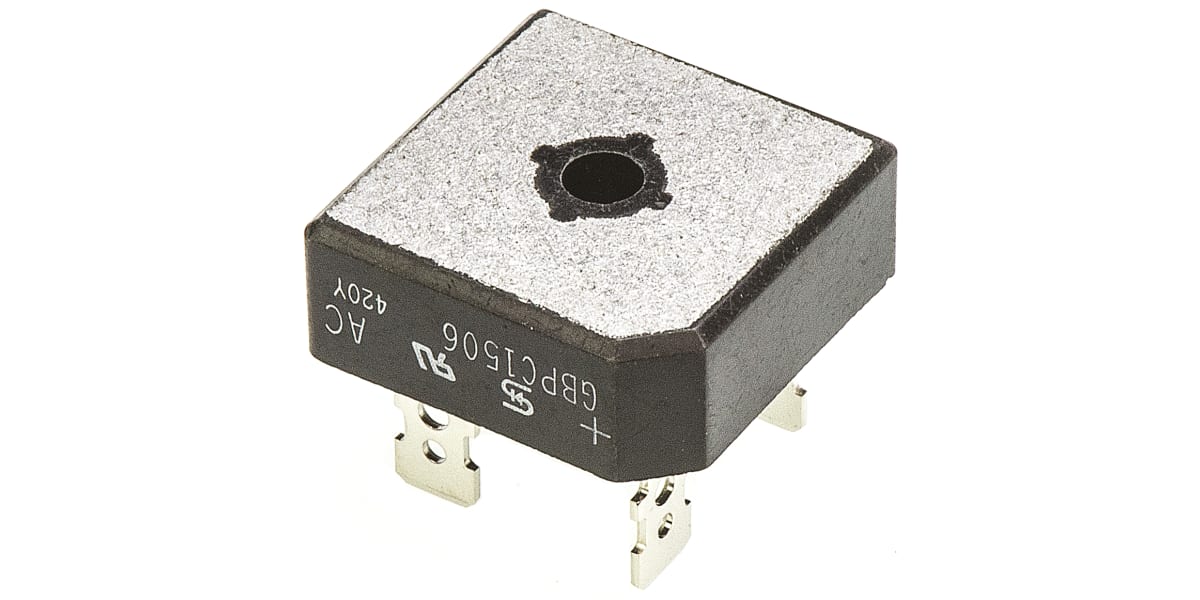

The GBPC1506 is a standard single-phase bridge rectifier from Taiwan Semiconductor. It is rated for an average rectified forward current of 15A at a case temperature of 55°C, with a maximum repetitive reverse voltage of 600V. The device can handle non-repetitive peak forward surge currents up to 300A for 8.3 ms.
Electrical characteristics include a forward voltage drop of 1.1V maximum at 7.5A, reverse current of 5 µA at 25°C and 500 µA at 125°C, and a capacitance of 180 pF at 4V. The I²t rating for fusing is 375 A²s. Thermal performance is supported by an integrally molded heat sink with a junction-to-case thermal resistance of 1.5°C/W, and the part can operate over a junction temperature range of -55°C to 150°C.
The GBPC1506 is housed in a 4-Square GBPC package designed for chassis mounting with a maximum mounting torque of 20 in-lbs. It features 2500V isolation from case to lead. The part is lead-free (Pb-Free) and UL certified (#E258596).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.83 | $4.83 |
| 10+ | $3.19 | $3.19 |
| 100+ | $2.25 | $2.25 |
| 500+ | $1.86 | $1.86 |
| 1,000+ | $1.73 | $1.73 |
| 2,000+ | $1.62 | $1.62 |
| 5,000+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive reverse voltage (VRRM) is 600V.
The average rectified forward current is 15A at a case temperature of 55°C.
The maximum forward voltage drop is 1.1V at a test current of 7.5A.
It is supplied in a 4-Square GBPC package for chassis mounting.
The non-repetitive peak forward surge current is 300A for an 8.3 ms single half-sine-wave.
The operating junction temperature range is -55°C to 150°C.
The isolated voltage from case to lead is 2500V.
